| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,220 pcs
|
3220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

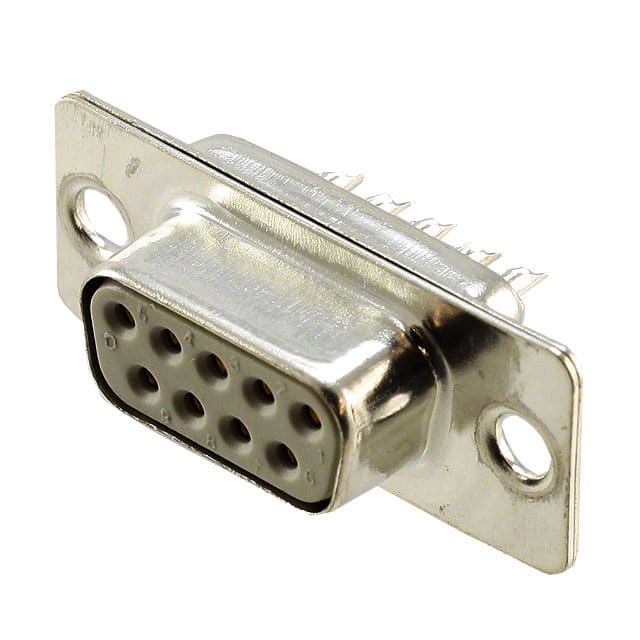

The TE Connectivity 3-1393483-8 is a 9-position D-Sub receptacle connector designed for reliable signal connections. It features female socket contacts with a gold finish of 8.00µin (0.203µm) for corrosion resistance and reliable conductivity. The connector uses solder cup termination, making it suitable for discrete wire connections without a PCB. The mounting type is free hanging (in-line), allowing flexible cable assembly applications. The shell is made of steel with a tin-plated finish, providing durability and EMI shielding. The connector layout is shell size 1 (DE, E) with an unthreaded housing/shell flange feature. The current rating is 3A per contact. The insulator material has a UL94 V-0 flammability rating, ensuring safety in various environments. This connector is commonly used in data communication, industrial control, and instrumentation applications where a compact and reliable D-Sub interface is required.
Receptacle, Female Sockets; D-Sub style.
9 positions arranged in 2 rows.
Free Hanging (In-Line).
Solder Cup.
3 Amps per contact.
Gold, 8.00µin (0.203µm) thickness.
UL94 V-0.
