| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

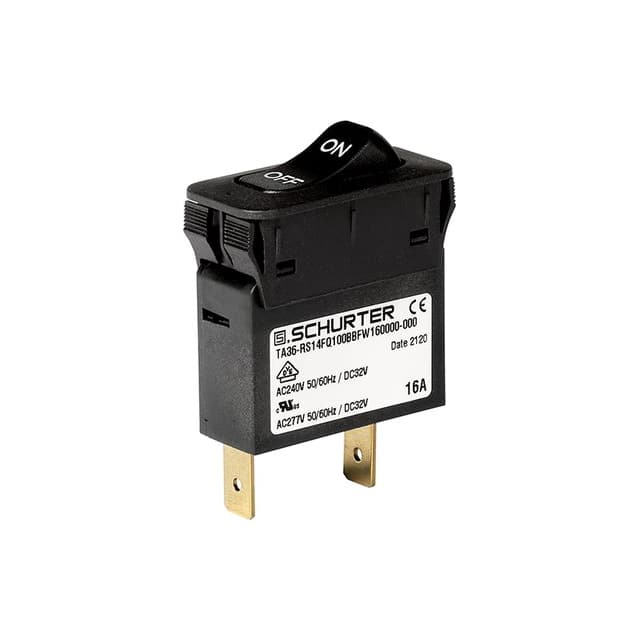

The Schurter Inc. 3-128-212 is a TA36 series thermal circuit breaker designed for reliable circuit protection. This 1-pole breaker offers a rated current of 16A and a voltage rating of 277 VAC (UL/CSA) or 240 VAC (IEC).
Key features include thermal-magnetic tripping, a rocker actuation type, and a panel mount design for easy integration into equipment. The breaker is built for durability with a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides essential short-circuit protection and overload protection.
Compliance includes RoHS3 status and an IP40 degree of protection on the front side. The unit has a weight of 19g for the 1-pole version.
The circuit breaker is rated for 240 VAC (IEC) and 277 VAC, and for DC: 32 VDC (1-pole) and 60 VDC (2-pole).
Panel mount.
-30 °C to 60 °C operating, -40 °C to 60 °C storage.
Thermal-magnetic.
IP40.
CCC, CE, cURus, VDE.
50,000 switching cycles.
