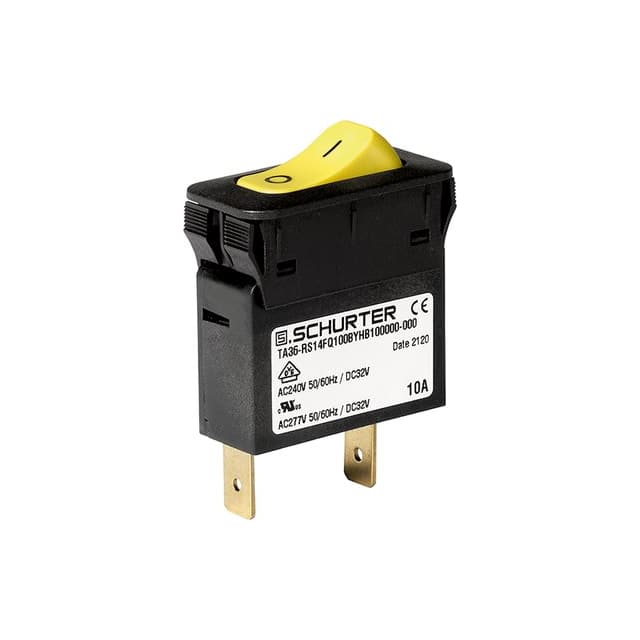

The Schurter Inc. 3-128-198 is a thermal circuit breaker designed for reliable circuit protection. This 1-pole unit offers a rated current of 10A and a voltage rating of 277 VAC (UL/CSA) or 240 VAC (IEC).
Featuring rocker actuation and a panel mount design, this circuit breaker is suitable for various industrial applications. It provides thermal-magnetic tripping for effective short-circuit protection. The device operates within an allowable temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles.
Key technical specifications include a conditional short circuit capacity of 2 kA at 240 VAC (IEC) and an IP40 degree of protection on the front side. It meets multiple approval standards including CCC, CE, cURus, and VDE.
The circuit breaker is rated for 240 VAC (IEC) and 277 VAC (UL/CSA). For DC, it is rated 32 VDC (1-pole) or 60 VDC (2-pole).
Panel mount.
-30 °C to 60 °C.
Thermal-magnetic.
0.05 to 20 A (magnetic up to 16 A).
2 kA at 240 VAC (IEC 60934).
50,000 switching cycles.
