| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,170 pcs
|
1170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

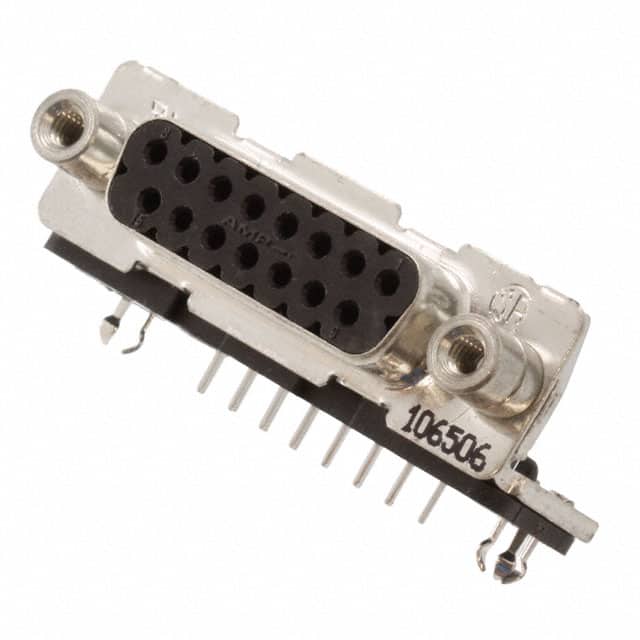

The TE Connectivity 3-106506-2 is a 15-position D-Sub receptacle connector designed for reliable signal connections. It features female sockets arranged in 2 rows, with a right angle solder termination for compact PCB mounting. The connector supports panel mount installation and includes a board lock for secure attachment.
The contacts are gold plated with a thickness of 30µin (0.76µm), ensuring excellent conductivity and corrosion resistance. The shell is made of steel with a tin-plated finish, providing durability and effective shielding. The backset spacing is 0.406 inches (10.30mm), and the flange includes a female screwlock (4-40) on the mating side for secure mating.
This connector is rated for 6A continuous current per contact and meets UL94 V-0 flammability rating for the insulator material. It is suitable for use in data communication, industrial control, and other applications requiring a robust D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
| 10+ | $6.09 | $6.09 |
| 25+ | $4.84 | $4.84 |
| 45+ | $4.70 | $4.70 |
| 90+ | $4.58 | $4.58 |
| 270+ | $4.36 | $4.36 |
| 540+ | $4.22 | $4.22 |
| 1,035+ | $4.21 | $4.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions arranged in 2 rows.
6A per contact.
Panel mount, through hole, right angle.
Gold plated with 30µin thickness.
Steel with tin plating.
Female screwlock (4-40) on mating side.
UL94 V-0.
