| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

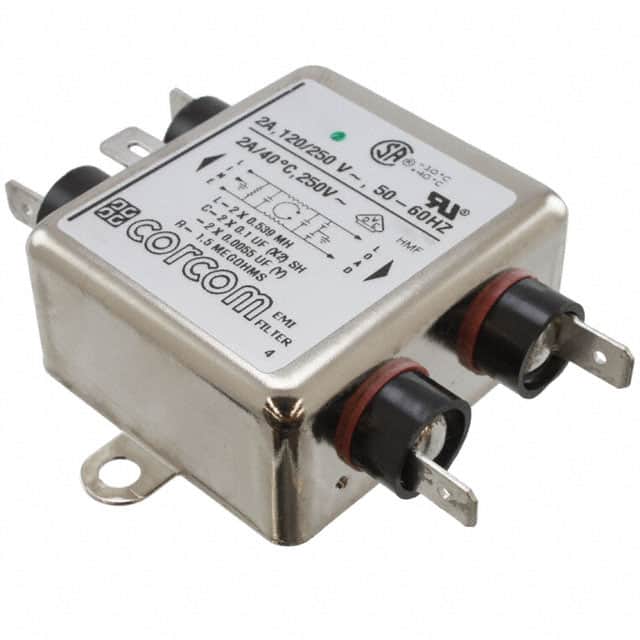

The TE Connectivity Corcom 2VK1 is a general purpose RFI power line filter designed for single phase applications. It is a single stage filter rated for a maximum voltage of 250VAC and a nominal current of 2A, operating at 50/60 Hz. The filter features an inductance of 539 µH and provides standard leakage current: 0.5 mA at 120VAC/60Hz and 1.0 mA at 250VAC/50Hz. Hipot ratings are 2250 VDC line-to-ground and 1450 VDC line-to-line for one minute.
The filter is chassis mounted with quick connect .250" spade terminals (style 1). It uses the K1 case style suitable for 1-10A ratings. The operating temperature range is -10°C to 40°C at rated current, with derating required above 40°C per the formula Io = Ir * sqrt((85-Ta)/45).
This filter is well suited for high impedance loads and applications where pulsed, continuous, or intermittent RFI interference is present. It is part of the Corcom K series and is available in standard leakage (V model) configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.39 | $25.39 |
| 10+ | $20.72 | $20.72 |
| 36+ | $18.50 | $18.50 |
| 72+ | $17.41 | $17.41 |
| 108+ | $16.79 | $16.79 |
| 252+ | $15.58 | $15.58 |
| 504+ | $15.09 | $15.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated voltage is 250 VAC.
The operating temperature range is -10°C to 40°C at rated current, with derating above 40°C.
Maximum leakage current is 0.5 mA at 120 VAC 60 Hz and 1.0 mA at 250 VAC 50 Hz (standard V model).
Hipot rating (one minute): 2250 VDC line-to-ground, 1450 VDC line-to-line.
The filter is chassis mounted with quick connect .250" spade terminals.
The 2VK1 is listed as RoHS3 compliant, but this status is unverified and should be confirmed with the manufacturer.
The inductance is 539 µH, noted with medium confidence.
