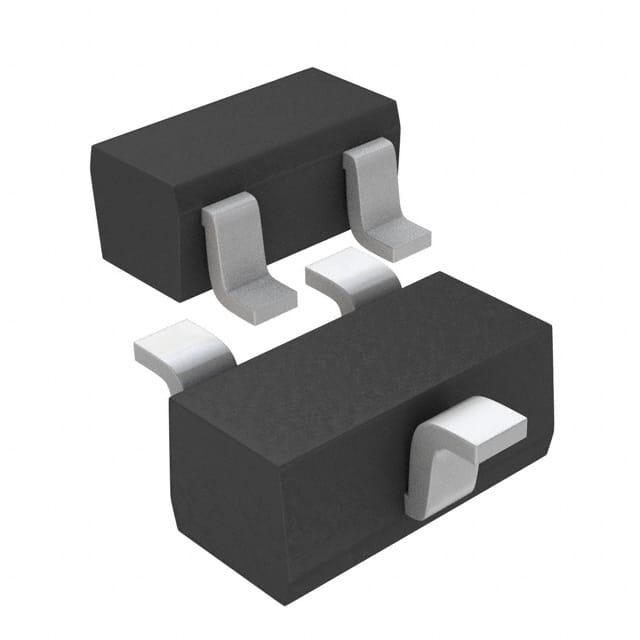

2SK3019TL N-Channel MOSFET from ROHM Semiconductor with 30V drain-source voltage and 100mA continuous drain current in a surface mount EMT3 package.
Mfr Part #:

2SK3019TL

Available from 3 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
N-Channel MOSFET from ROHM Semiconductor with 30V drain-source voltage and 100mA continuous drain current in a surface mount EMT3 package.
✓ Total Stock: 42,407 pcs
$ Price Range: $0.06 - $0.35

2SK3019TL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
37,000 pcs
On Request
37000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 1323+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,407 pcs
On Request
1407 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SK3019TL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Termination Style
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

2SK3019TL Description

Short technical summary and product information.

The 2SK3019TL is an N-Channel MOSFET from ROHM Semiconductor designed for small switching applications. It features a maximum drain-source voltage of 30V and a continuous drain current of 100mA. The device offers low on-resistance of 8 ohms maximum at 4V gate drive and fast switching speeds with typical turn-on delay of 15ns and rise time of 35ns. It is capable of low voltage drive at 2.5V making it suitable for portable equipment. The MOSFET is housed in a surface mount EMT3 package (SC-75A, SOT-416) and is supplied in tape and reel packaging with a standard quantity of 3000 pieces.

2SK3019TL Quick Information

Product Type: MOSFET
Canonical Name: 2SK3019TL N-Channel MOSFET
Subcategory: N-Channel

2SK3019TL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

2SK3019TL Estimated Pricing

Qty Low High
1+ $0.35 $0.35
10+ $0.21 $0.21
50+ $0.15 $0.15
100+ $0.13 $0.13
500+ $0.10 $0.10
3,000+ $0.07 $0.07
9,000+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SK3019TL Features

  • Low on-resistance of 8 ohms maximum.
  • Fast switching speed with 15ns turn-on delay.
  • Low voltage drive at 2.5V for portable equipment.
  • Surface mount EMT3 package (SC-75A, SOT-416).
  • RoHS3 compliant and REACH unaffected.

2SK3019TL Applications

  • Ideal for interfacing and switching circuits.
  • Suitable for portable battery-powered equipment.
  • Used in low voltage load switching applications.
  • Applicable in signal switching and level shifting.

2SK3019TL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the 2SK3019TL?

The maximum drain-source voltage is 30V.

What is the continuous drain current rating?

The continuous drain current is 100mA at Ta=25°C.

What package is the 2SK3019TL available in?

It is available in a surface mount EMT3 package, also known as SC-75A or SOT-416.

What is the operating temperature range?

The channel temperature maximum is 150°C, and the storage temperature range is -55°C to 150°C.

Is the 2SK3019TL RoHS compliant?

The part is listed as RoHS3 Compliant, though this is unverified.

What is the typical on-resistance at 4V gate drive?

The typical on-resistance is 5 ohms, with a maximum of 8 ohms at ID=10mA and VGS=4V.

What is the gate threshold voltage range?

The gate threshold voltage ranges from 0.8V minimum to 1.5V maximum, with a typical value of 1.0V at VDS=3V and ID=100µA.
