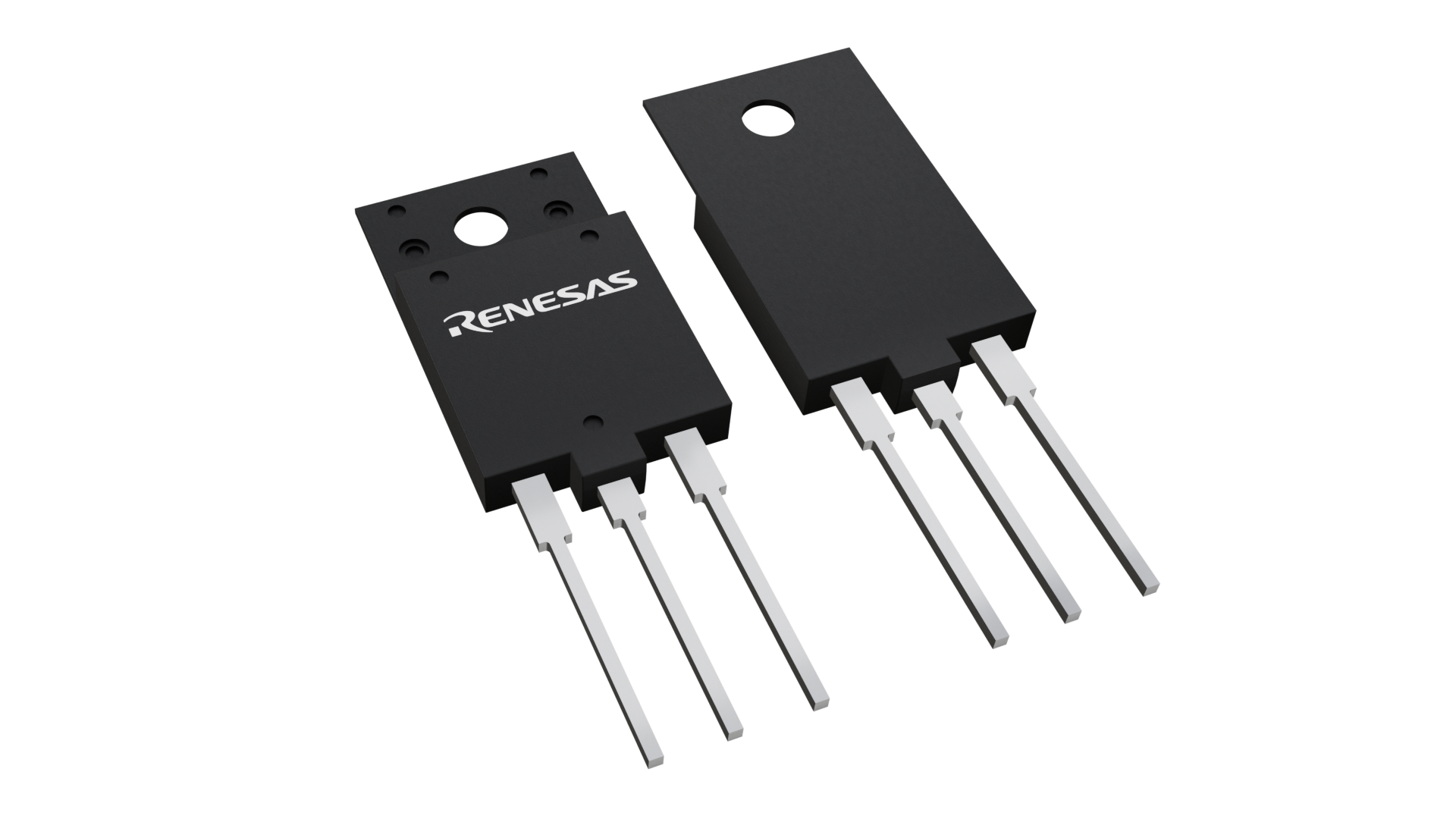

2SK2225-80-E#T2 The Renesas 2SK2225-80-E#T2 is an N-Channel MOSFET with a drain-source voltage of 1500V and continuous drain current of 2A. It features a maximum on-resistance of 12Ohm at 1A and 15V gate drive.
Mfr Part #:

2SK2225-80-E#T2

Available from 2 distributors
Mfr Name: Renesas
Renesas
The Renesas 2SK2225-80-E#T2 is an N-Channel MOSFET with a drain-source voltage of 1500V and continuous drain current of 2A. It features a maximum on-resistance of 12Ohm at 1A and 15V gate drive.
✓ Total Stock: 6,181 pcs
$ Price Range: $11.58 - $20.09

2SK2225-80-E#T2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,581 pcs
On Request
2581 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SK2225-80-E#T2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

2SK2225-80-E#T2 Description

Short technical summary and product information.

The Renesas 2SK2225-80-E#T2 is a high-voltage N-Channel MOSFET designed for applications requiring up to 1500V drain-source voltage. It can handle a continuous drain current of 2A at ambient temperature and offers a maximum on-resistance of 12Ohm when driven with 15V gate-source voltage.



The device features a gate threshold voltage of 4V at 1mA drain current and a maximum gate-source voltage rating of ±20V. Input capacitance is 990pF at Vds=10V. Power dissipation is rated at 50W at case temperature, with a maximum operating junction temperature of 150°C.



The MOSFET is housed in a TO-220-3 Full Pack package (supplier device package TO-3PFM) with through-hole mounting, suitable for high-voltage switching and power conversion circuits. The part is RoHS3 compliant and has an MSL of 1 (unlimited).

2SK2225-80-E#T2 Quick Information

Product Type: MOSFET
Canonical Name: Renesas 2SK2225-80-E#T2 N-Channel MOSFET, 1500V, 2A, TO-220-3 Full Pack
Subcategory: N-Channel MOSFET

2SK2225-80-E#T2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

2SK2225-80-E#T2 Estimated Pricing

Qty Low High
1+ $20.09 $20.09
10+ $12.73 $12.73
100+ $11.58 $11.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SK2225-80-E#T2 Features

  • 1500V drain-source voltage rating.
  • 2A continuous drain current capability.
  • 12Ohm maximum on-resistance at 1A.
  • TO-220-3 Full Pack through-hole package.
  • RoHS3 compliant and MSL 1 unlimited.

2SK2225-80-E#T2 Applications

  • High-voltage power supply switching circuits.
  • Inverter and converter topologies.
  • Motor drive and industrial control systems.
  • High-voltage DC-DC converters.

2SK2225-80-E#T2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the 2SK2225-80-E#T2?

1500V.

What is the maximum drain current?

2A at ambient temperature.

What is the on-resistance?

12Ohm maximum at 1A drain current and 15V gate-source voltage.

What is the maximum operating temperature?

150°C junction temperature.

What is the package type?

TO-220-3 Full Pack (supplier device package TO-3PFM).

Is the device RoHS compliant?

Yes, RoHS3 compliant.

What is the gate threshold voltage?

4V maximum at 1mA drain current.
