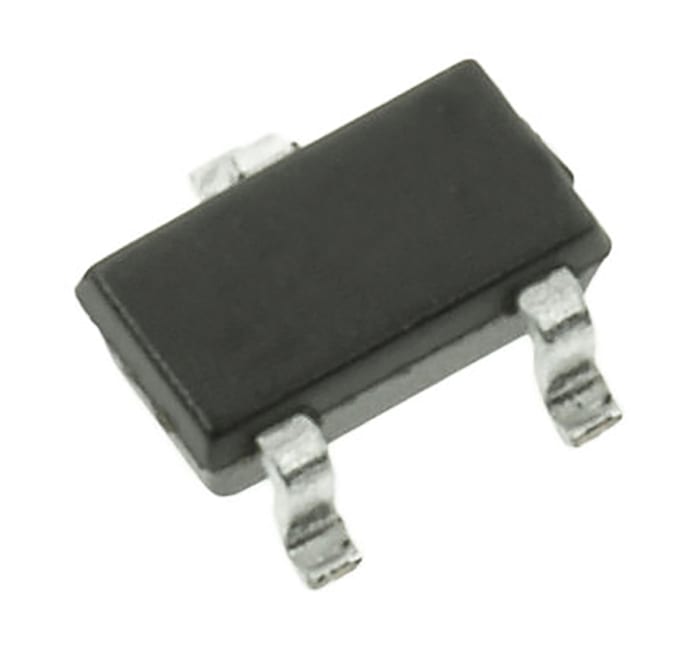

2SK209-Y The Toshiba 2SK209-Y is a single type N-Channel JFET. It features a maximum drain source voltage of 10V and a power dissipation of 150mW.
Mfr Part #:

2SK209-Y

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba 2SK209-Y is a single type N-Channel JFET. It features a maximum drain source voltage of 10V and a power dissipation of 150mW.
✓ Total Stock: 487,590 pcs
$ Price Range: $0.99

2SK209-Y Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
463,590 pcs
On Request
463590 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
24,000 pcs
On Request
24000 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SK209-Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
View Similar Products (0)

2SK209-Y Description

Short technical summary and product information.

The Toshiba 2SK209-Y is a single type N-Channel Junction Field-Effect Transistor (JFET). It is designed for surface mounting and comes in a compact SOT-346 package.



Key electrical characteristics include a maximum drain source voltage (Vds) of 10V and a drain source current (Ids) ranging from 1.2 to 3 mA. The maximum power dissipation (Pd) is rated at 150mW, and the maximum drain source resistance (Rds) is 1 kΩ.



This JFET operates within a temperature range of -55°C to 125°C. Its dimensions are 2.9mm in length and 1.1mm in height. The device is suitable for various electronic applications requiring JFET characteristics.



Compliance information indicates RoHS3 compliance, an MSL of 1, and REACH unaffected status, though these are unverified.

2SK209-Y Quick Information

Product Type: JFET
Canonical Name: Toshiba 2SK209-Y Single Type N-Channel JFET
Subcategory: JFET

2SK209-Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2SK209-Y Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SK209-Y Features

  • Single type N-Channel JFET
  • 10V maximum drain source voltage
  • 150mW maximum power dissipation
  • Surface mount SOT-346 package
  • Wide operating temperature range

2SK209-Y Applications

  • Used in discrete semiconductor circuits
  • Suitable for amplification tasks
  • Applicable for switching functions
  • General purpose JFET applications

2SK209-Y FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the 2SK209-Y?

10V.

What is the drain-source current range of the 2SK209-Y?

1.2 to 3mA.

What is the maximum power dissipation of the 2SK209-Y?

150mW.

What is the maximum drain-source resistance of the 2SK209-Y?

1kΩ.

What is the operating temperature range of the 2SK209-Y?

-55°C to 125°C.

What package is the 2SK209-Y available in?

SOT-346, 3-pin, surface mount.

What are the specified package dimensions of the 2SK209-Y?

Length 2.9mm and height 1.1mm.
