| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Type | |
| Weight |

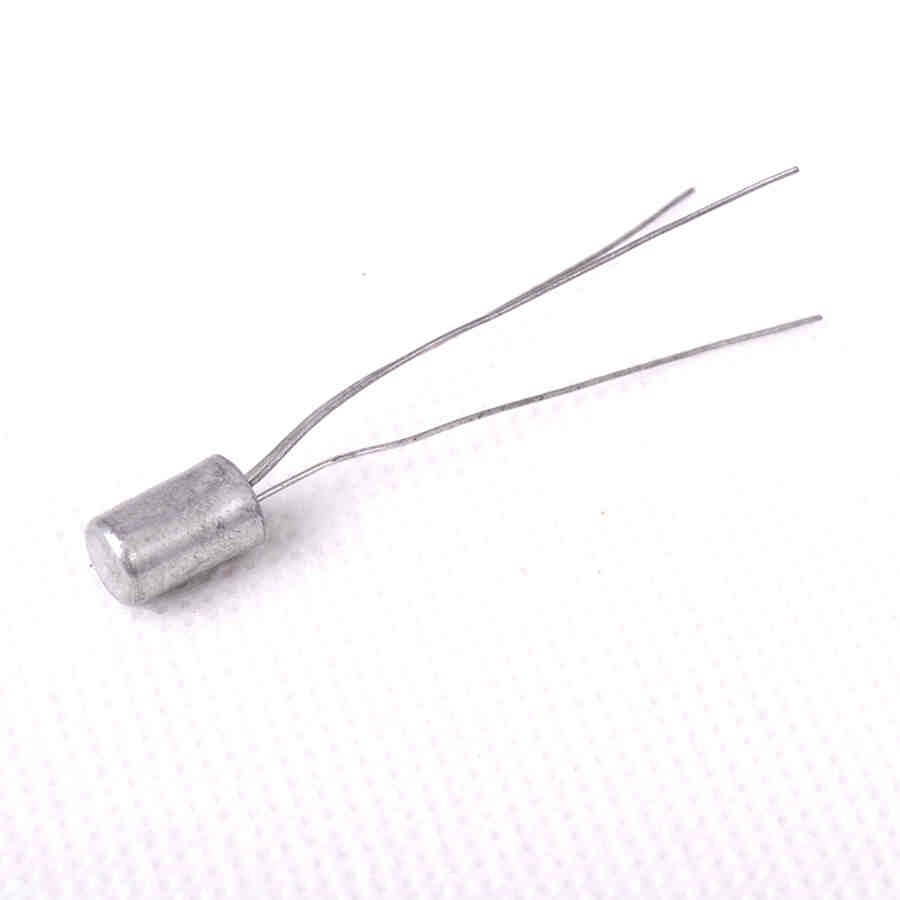

The Sanyo Denki 2SD72 is a Germanium NPN bipolar junction transistor designed for various electronic applications. It features a maximum collector current of 0.6A and a maximum collector-emitter voltage of 25V.
Key electrical specifications include a minimum forward current transfer ratio (hFE) of 60 and a transition frequency of 750 kHz. The transistor operates within a maximum ambient temperature of 100°C, with a maximum junction temperature of 125°C.
This component is housed in a TO1 case and is not surface mountable. Its material composition is Germanium, making it suitable for specific circuit designs where germanium transistors offer performance advantages.
Applications for the 2SD72 can be found in general-purpose amplification and switching circuits where its specific characteristics are beneficial. The TO1 package is a through-hole type, requiring appropriate PCB mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector current for the 2SD72 transistor is 0.6A.
The 2SD72 transistor has a breakdown voltage of 25V for both collector-base and collector-emitter.
The minimum forward current transfer ratio (hFE) for the 2SD72 transistor is 60.
The maximum operating temperature for the 2SD72 transistor is 100°C.
The 2SD72 transistor is supplied in a TO1 case.
