| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature |

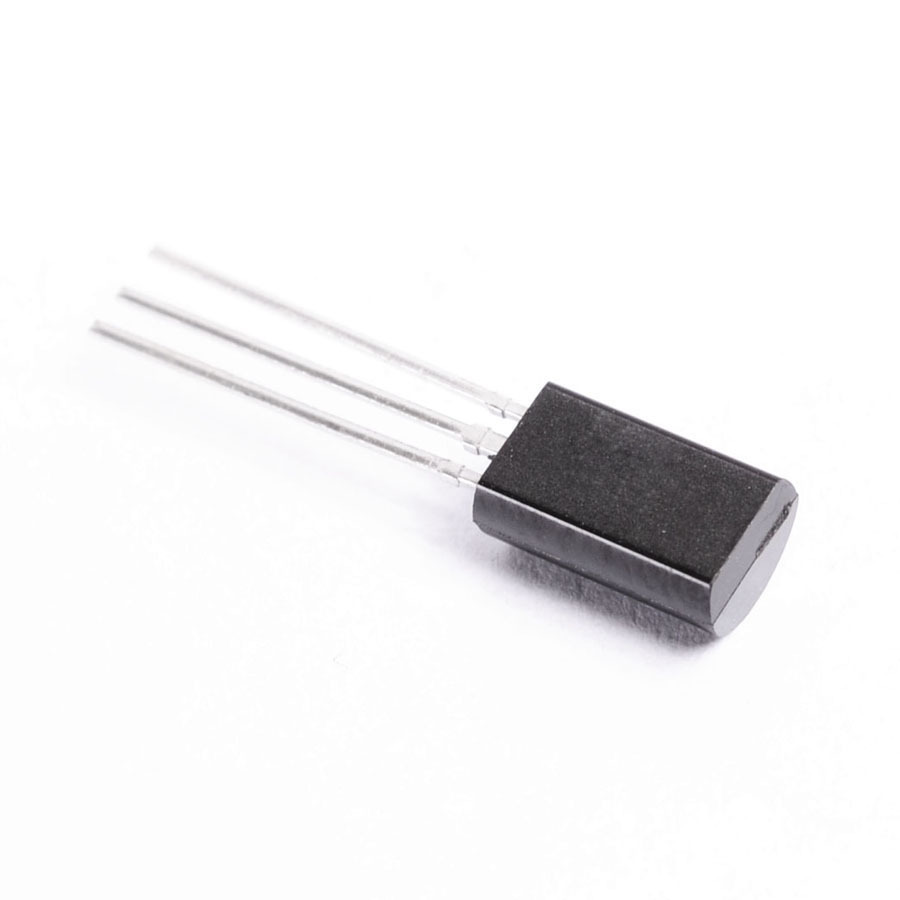

The 2SD545 is a silicon NPN transistor from Sanyo Denki, designed for general-purpose applications. It offers a maximum collector-emitter voltage (Vce) of 25V and a maximum collector current (Ic) of 1A. The transistor has a maximum power dissipation of 0.6W and an operating junction temperature up to 125°C.
Packaged in a TO92L case, this through-hole component is suitable for various electronic circuits. Key electrical characteristics include a minimum forward current transfer ratio (hFE) of 60 and a transition frequency (Ft) of 180 MHz. The 2SD545 is a reliable choice for amplification and switching tasks in electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vce) for the 2SD545 is 25V.
The maximum collector current (Ic max) for the 2SD545 is 1A.
The 2SD545 transistor is supplied in a TO92L package.
The maximum operating junction temperature for the 2SD545 is 125°C.
The minimum forward current transfer ratio (hFE) for the 2SD545 is 60.
The transition frequency (Ft) of the 2SD545 is a minimum of 180 MHz.
