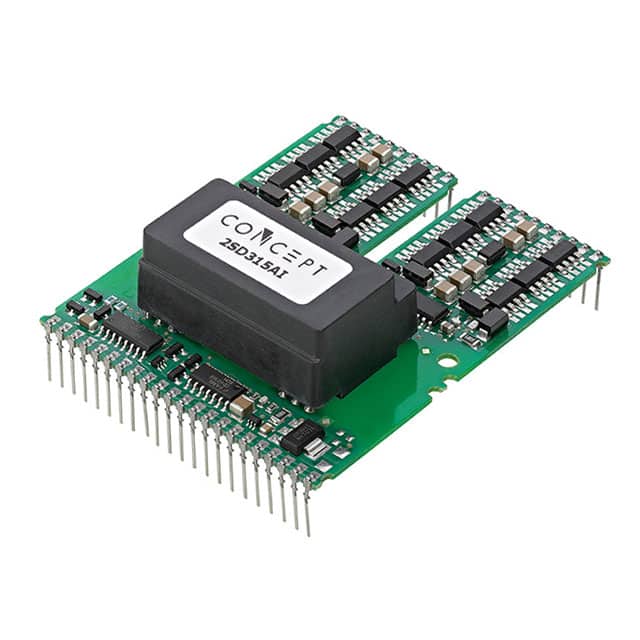

2SD315AI The Power Integrations 2SD315AI is a dual gate driver module designed for reliable driving of IGBTs and Power MOSFETs. It offers high gate current and robust isolation.
Mfr Part #:

2SD315AI

Available from 1 distributors
Mfr Name: Power Integrations
Power Integrations
The Power Integrations 2SD315AI is a dual gate driver module designed for reliable driving of IGBTs and Power MOSFETs. It offers high gate current and robust isolation.
✓ Total Stock: 2,524 pcs
$ Price Range: $2.01

2SD315AI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,524 pcs
On Request
2524 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SD315AI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Driven Configuration
Duty Cycle
Gate Type
Mounting Type
Number of Drivers
Operating Temperature
Rise
Supplier Device Package
Supplier Package
View Similar Products (0)

2SD315AI Description

Short technical summary and product information.

The 2SD315AI from Power Integrations is a dual SCALE driver core designed for the reliable driving and safe operation of IGBTs and Power MOSFETs. The SCALE acronym stands for Scaleable, Compact, All purpose, Low cost, and Easy to use.



This module is suitable for 1200V and 1700V IGBTs and features a high gate current of ±15A. It provides electrical isolation of 4000VAC and boasts high dv/dt immunity, guaranteed at over 100,000V/µs. The switching frequency can range from DC to over 100kHz, with a duty cycle of 0-100%.



Applications include inverters, motor drive technology, traction, railroad power supplies, converters, and switched-mode power supplies. The 2SD315AI is housed in a 44-DIP Module, 42 Leads package and is designed for through-hole mounting.



Key specifications include a current rating of 18A per channel, rise times of 160ns and 130ns, and an operating temperature range of -40°C to 85°C. The driver configuration is half-bridge, supporting IGBT and N-Channel/P-Channel MOSFET gate types.

2SD315AI Quick Information

Product Type: Gate Driver
Series: SCALE
Canonical Name: 2SD315AI Dual SCALE Driver Core for IGBTs and Power MOSFETs
Subcategory: Half-Bridge

2SD315AI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2SD315AI Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SD315AI Features

  • Dual gate driver for IGBTs and MOSFETs.
  • High gate current of ±15A.
  • 4000VAC electrical isolation.
  • High dv/dt immunity >100,000V/µs.
  • Suitable for 1200V and 1700V IGBTs.

2SD315AI Applications

  • Used in inverters and converters.
  • Suitable for motor drive technology.
  • Applied in traction and railroad supplies.
  • Found in switched-mode power supplies.

2SD315AI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 2SD315AI?

The 2SD315AI operates from -40°C to 85°C.

What is the gate current capability of the 2SD315AI?

The 2SD315AI provides a nominal gate current of ±15A.

What is the isolation voltage of the 2SD315AI?

The 2SD315AI provides 4000VAC electrical isolation.

What switching frequency range does the 2SD315AI support?

The 2SD315AI supports switching from DC to over 100kHz.

What package type is the 2SD315AI available in?

The 2SD315AI is available in a 44-DIP Module with 42 leads.

What types of transistors can the 2SD315AI drive?

The 2SD315AI can drive IGBTs, N-Channel MOSFETs, and P-Channel MOSFETs.

What is the dv/dt immunity of the 2SD315AI?

The 2SD315AI offers a dv/dt immunity greater than 100,000V/µs.
