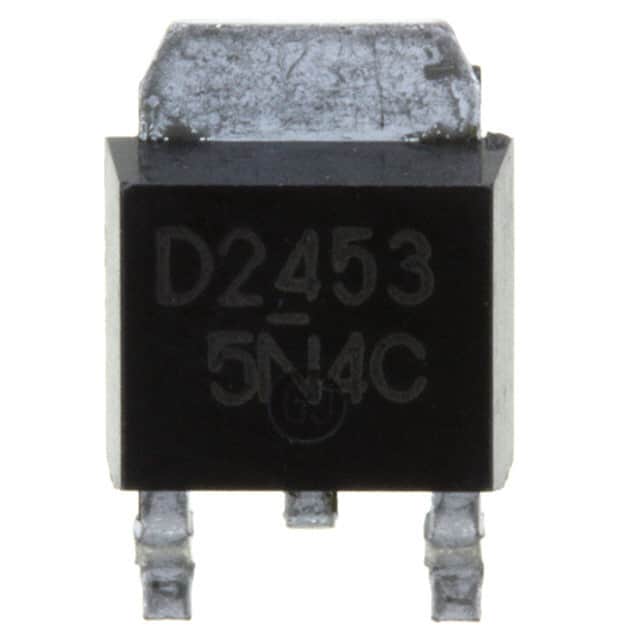

The 2SD245300L is a silicon NPN triple diffusion planar transistor manufactured by Panasonic Electronic Components. It is designed for high current transfer ratio and power amplification applications.
This transistor features a collector-emitter voltage (Vceo) of 60V, collector-base voltage (Vcbo) of 80V, and emitter-base voltage (Vebo) of 6V. The continuous collector current is rated at 2A with a peak collector current of 4A. Base current is limited to 1A. Power dissipation is 10W at case temperature 25°C. The DC current gain (hFE) is a minimum of 500 at Vce=4V and Ic=500mA, with a maximum collector-emitter saturation voltage of 1V at Ib=50mA and Ic=2A. The transition frequency is 50 MHz.
The device is housed in a U-G2 package, which is a surface-mount package equivalent to TO-252-3, DPak (2 leads + tab), SC-63. It is designed for surface mount assembly and is RoHS3 compliant.
The maximum collector-emitter voltage (Vceo) is 60V.
The device is available in a U-G2 surface mount package, equivalent to TO-252-3, DPak (2 leads + tab), SC-63.
The junction temperature (Tj) is rated up to 150°C, and the storage temperature range is -55°C to +150°C.
Yes, the 2SD245300L is RoHS3 compliant as stated in the datasheet.
The maximum continuous collector current (Ic) is 2A, with a peak non-repetitive current (Icp) of 4A.
The minimum DC current gain (hFE) is 500 at Vce=4V and Ic=500mA.
The power dissipation is 10W at case temperature 25°C.
