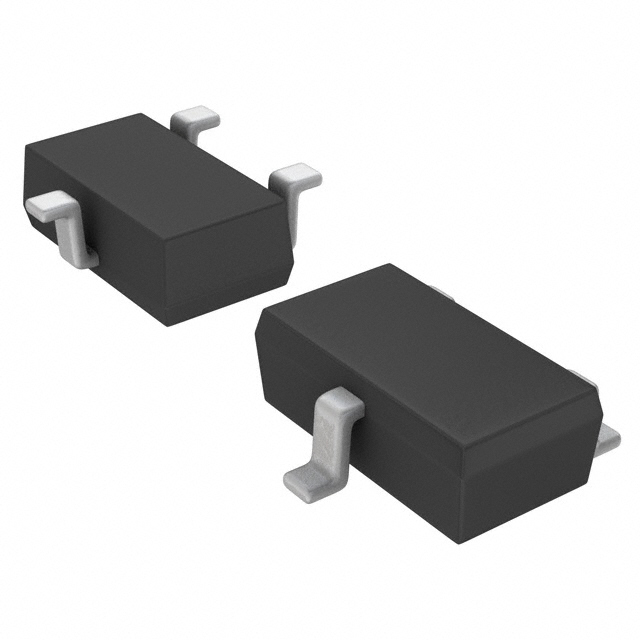

2SCR513RTL 2SCR513RTL is an NPN bipolar junction transistor from ROHM Semiconductor. It features 50V collector-emitter breakdown voltage, 1A continuous collector current, and 500mW power dissipation in a surface-mount SC-96 package.
Mfr Part #:

2SCR513RTL

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
2SCR513RTL is an NPN bipolar junction transistor from ROHM Semiconductor. It features 50V collector-emitter breakdown voltage, 1A continuous collector current, and 500mW power dissipation in a surface-mount SC-96 package.
✓ Total Stock: 2,724 pcs
$ Price Range: $0.14 - $0.78

2SCR513RTL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,395 pcs
On Request
1395 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,329 pcs
On Request
1329 pcs On Request 1 On Request On Request 1327+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SCR513RTL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

2SCR513RTL Description

Short technical summary and product information.

The 2SCR513RTL is an NPN bipolar junction transistor manufactured by ROHM Semiconductor. It is designed for general-purpose switching and amplification applications in surface-mount assemblies.



Key electrical characteristics include a maximum collector-emitter breakdown voltage of 50V, a continuous collector current rating of 1A, and a power dissipation limit of 500mW. The DC current gain (hFE) is a minimum of 180 at Ic=50mA, Vce=2V, and the collector-emitter saturation voltage is a maximum of 350mV at Ib=25mA, Ic=500mA. The transition frequency is 360MHz, indicating suitability for moderate-speed switching.



The transistor is housed in an SC-96 surface-mount package with a TSMT3 supplier device package. It has a maximum operating junction temperature of 150°C. The device is declared RoHS3 compliant, MSL 1 (unlimited floor life), and REACH unaffected, though these compliance claims are unverified.

2SCR513RTL Quick Information

Product Type: NPN Bipolar Transistor
Canonical Name: 2SCR513RTL NPN Bipolar Junction Transistor
Subcategory: General Purpose Transistor

2SCR513RTL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2SCR513RTL Estimated Pricing

Qty Low High
1+ $0.78 $0.78
10+ $0.48 $0.48
100+ $0.31 $0.31
500+ $0.24 $0.24
1,000+ $0.21 $0.21
3,000+ $0.18 $0.18
6,000+ $0.17 $0.17
9,000+ $0.14 $0.14
24,000+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SCR513RTL Features

  • NPN transistor for general purpose use.
  • 50V collector-emitter breakdown voltage.
  • 1A continuous collector current rating.
  • 500mW maximum power dissipation.
  • High transition frequency of 360MHz.

2SCR513RTL Applications

  • Suitable for general-purpose switching circuits.
  • Ideal for low-frequency signal amplification.
  • Can be used in low-power driver applications.

2SCR513RTL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the 2SCR513RTL?

Maximum collector-emitter breakdown voltage is 50V.

What package does the 2SCR513RTL come in?

It is available in SC-96 surface-mount package with TSMT3 supplier device package.

What is the operating junction temperature of the 2SCR513RTL?

Maximum junction temperature is 150°C.

Is the 2SCR513RTL RoHS compliant?

It is declared RoHS3 compliant, though this is unverified.

What is the minimum DC current gain of the 2SCR513RTL?

Minimum hFE is 180 at Ic=50mA, Vce=2V.

What is the transition frequency of the 2SCR513RTL?

Transition frequency is 360MHz.

What is the collector-emitter saturation voltage of the 2SCR513RTL?

Maximum Vce(sat) is 350mV at Ib=25mA, Ic=500mA.
