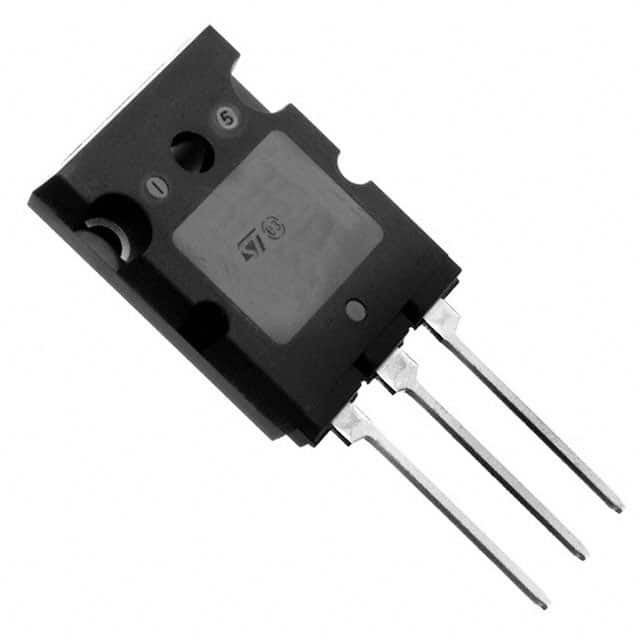

2SC5200 The 2SC5200 is an NPN bipolar junction transistor from STMicroelectronics. It features a maximum collector-emitter voltage of 230V, a maximum collector current of 15A, and a power dissipation of 150W.
Mfr Part #:

2SC5200

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The 2SC5200 is an NPN bipolar junction transistor from STMicroelectronics. It features a maximum collector-emitter voltage of 230V, a maximum collector current of 15A, and a power dissipation of 150W.
✓ Total Stock: 91,560 pcs

2SC5200 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
91,560 pcs
On Request
91560 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SC5200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

2SC5200 Description

Short technical summary and product information.

The 2SC5200 is a high-power NPN bipolar junction transistor designed for general-purpose switching and linear amplification applications. Manufactured by STMicroelectronics, this through-hole device is housed in a TO-264-3 (TO-264AA) package.



Key electrical specifications include a maximum collector-emitter voltage (Vce) of 230V, a maximum collector current (Ic) of 15A, and a maximum power dissipation (Pc) of 150W. The transistor offers a minimum DC current gain (hFE) of 55 at a test condition of Ic=1A and Vce=5V. The maximum collector-emitter saturation voltage (Vce(sat)) is 3V at Ib=800mA and Ic=8A. The typical transition frequency (ft) is 30 MHz.



The device has a maximum operating junction temperature of 150°C. It is designed for through-hole mounting and is supplied in a TO-264 package, which provides efficient heat dissipation for high-power operation.

2SC5200 Quick Information

Product Type: Bipolar Junction Transistor (BJT)
Canonical Name: 2SC5200 NPN Bipolar Junction Transistor
Subcategory: Single NPN

2SC5200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2SC5200 Features

  • NPN bipolar junction transistor design.
  • Maximum collector-emitter voltage of 230V.
  • Maximum collector current rating of 15A.
  • Power dissipation capability of 150W.
  • Through-hole TO-264-3 package.

2SC5200 Applications

  • Used in high-power audio amplifier output stages.
  • Suitable for switching power supply circuits.
  • Ideal for motor control and power regulation.
  • Applied in general-purpose linear amplification.

2SC5200 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage (Vce) of the 2SC5200?

The maximum collector-emitter voltage (Vce) is 230V.

What is the maximum collector current (Ic) rating?

The maximum collector current (Ic) is 15A.

What is the power dissipation of the 2SC5200?

The maximum power dissipation (Pc) is 150W.

What package type does the 2SC5200 use?

The 2SC5200 is available in a TO-264-3 (TO-264AA) through-hole package.

What is the operating junction temperature range?

The maximum operating junction temperature is 150°C.

Is the 2SC5200 RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
