| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,606 pcs
|
4606 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gain | |
| Lead Style | |
| Mounting Type | |
| Noise Figure | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Transistor Type |

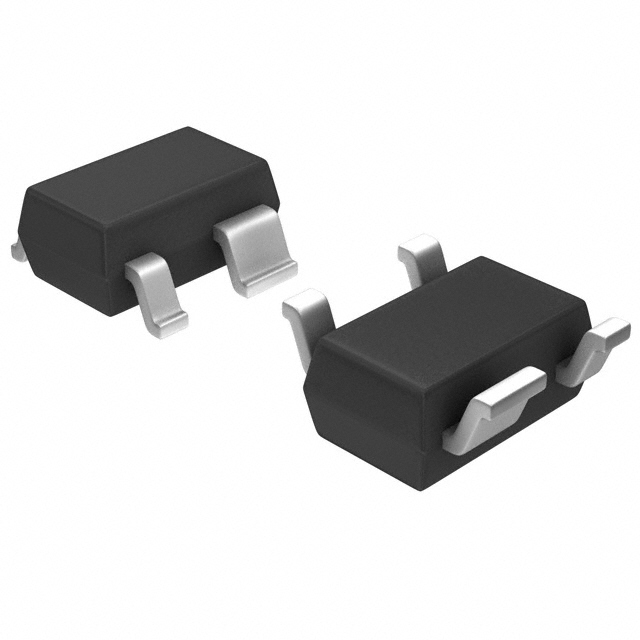

The CEL 2SC5015-T1-A is a bipolar NPN RF transistor suitable for various electronic applications. It is manufactured by CEL and comes in a SOT-343 package, designed for surface mounting.
Key electrical characteristics include a maximum collector current of 30mA and a collector-emitter breakdown voltage of 6V. The transistor offers a minimum DC current gain (hFE) of 75 at 10mA and 3V. Its transition frequency is 12GHz, with a typical noise figure of 1.5dB at 2GHz and a gain of 11dB.
The operating temperature range is up to 150°C (TJ). The product is supplied in Tape & Reel (TR) packaging. Its moisture sensitivity level is MSL 1 (Unlimited).
This component is designated with ECCN EAR99 and has a HTSUS value of 8541.21.0075. It is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector current (Ic) for the 2SC5015-T1-A is 30mA.
The maximum collector-emitter breakdown voltage for the 2SC5015-T1-A is 6V.
The 2SC5015-T1-A has an operating temperature range of 150°C (TJ).
The minimum DC current gain (hFE) for the 2SC5015-T1-A is 75 at 10mA collector current and 3V collector-emitter voltage.
The transition frequency for the 2SC5015-T1-A is 12GHz.
The typical noise figure for the 2SC5015-T1-A is 1.5dB at 2GHz.
The 2SC5015-T1-A is an NPN type transistor.
