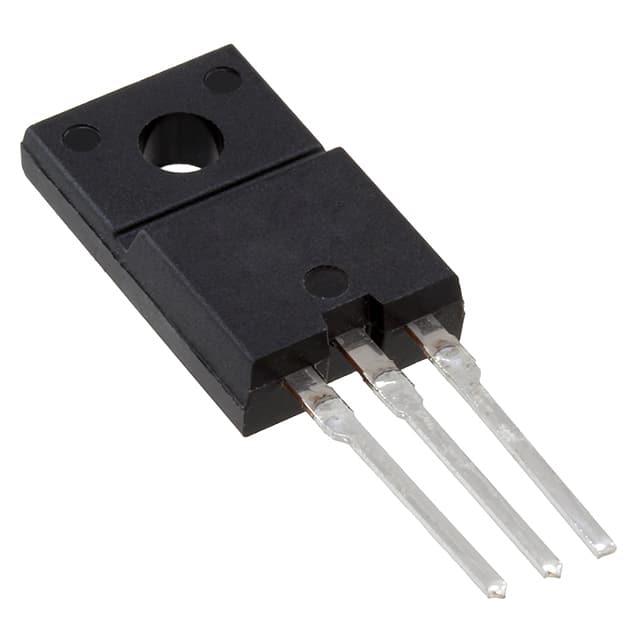

The Sanken 2SC3852 is a silicon NPN triple diffused bipolar junction transistor designed for general purpose applications such as solenoid drivers, motor drivers, and series regulators.
Key electrical ratings include a maximum collector-emitter voltage (VCEO) of 60V, collector current (IC) of 3A, and power dissipation (PC) of 25W at Tc=25°C. The device features a high DC current gain (hFE) of 500 minimum at 500mA and 4V VCE, and a low collector-emitter saturation voltage (VCE(sat)) of 0.5V maximum at 2A and 50mA base current. Typical transition frequency (fT) is 15MHz, and typical output capacitance (COB) is 50pF.
The 2SC3852 is housed in a TO-220-3 Full Pack (TO-220F) through-hole package with a mounting weight of approximately 2.0g. The operating junction temperature range is 150°C maximum, with storage from -55°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.14 | $3.14 |
| 10+ | $2.04 | $2.04 |
| 100+ | $1.41 | $1.41 |
| 500+ | $1.14 | $1.14 |
| 1,000+ | $1.05 | $1.05 |
| 2,000+ | $0.98 | $0.98 |
| 5,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum VCEO is 60V.
The maximum IC is 3A.
The 2SC3852 is in a TO-220-3 Full Pack (TO-220F) through-hole package.
The maximum junction temperature is 150°C.
The manufacturer states RoHS: YES, indicating RoHS3 compliance.
The typical fT is 15MHz.
The minimum hFE is 500 at IC=500mA and VCE=4V.
