| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,512 pcs
|
4512 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base-to-Emitter Saturation Voltage | |
| Collector Current (Pulse) | |
| Collector Cutoff Current | |
| Collector-to-Base Breakdown Voltage | |
| Collector-to-Base Voltage | |
| Collector-to-Emitter Breakdown Voltage | |
| Current | |
| DC Current Gain (Minimum @ Vce=5 V, Ic=10 mA) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Emitter Cutoff Current | |
| Emitter-to-Base Breakdown Voltage | |
| Emitter-to-Base Voltage | |
| Fall Time | |
| Frequency | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Output Capacitance | |
| Power | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Time | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Turn On Time | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |
The 2SC3332S is a high-voltage NPN bipolar junction transistor manufactured by On Semiconductor. It is designed for general-purpose switching and amplification applications requiring a collector-emitter voltage rating of up to 160V and a continuous collector current of 700mA.
Key electrical characteristics include a minimum DC current gain (hFE) of 140 at 100mA and a typical gain-bandwidth product of 120MHz. The device features a low collector-emitter saturation voltage of 400mV maximum at 250mA, contributing to efficient switching performance.

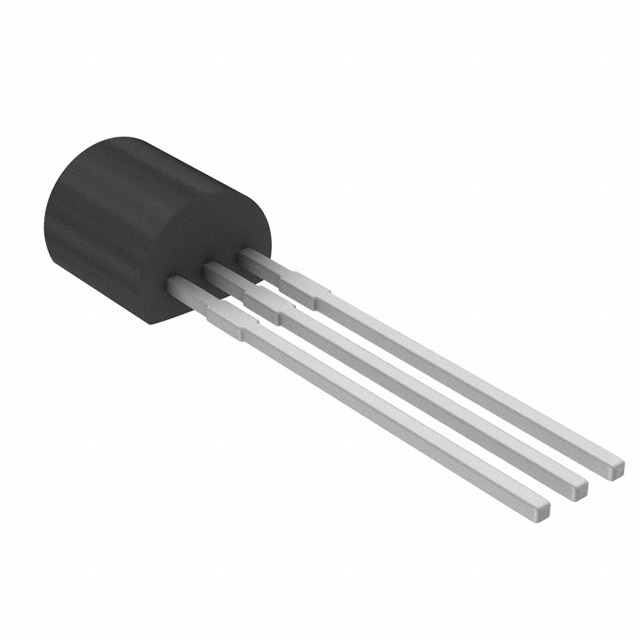

The transistor is housed in a through-hole TO-92 package (TO-226-3, TO-226AA), making it suitable for manual assembly and prototyping. It is supplied in bulk packaging with a standard quantity of 500 pieces per bag.
| Qty | Low | High |
|---|---|---|
| 1,212+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) is 160V.
The maximum continuous collector current is 0.7A, with a pulse rating of 1.5A.
It is available in a through-hole TO-92 package (TO-226-3, TO-226AA).
The maximum junction temperature is 150°C, and the storage temperature range is -55 to +150°C.
The datasheet indicates the part is Pb Free, and it is listed as RoHS3 Compliant.
