| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature |

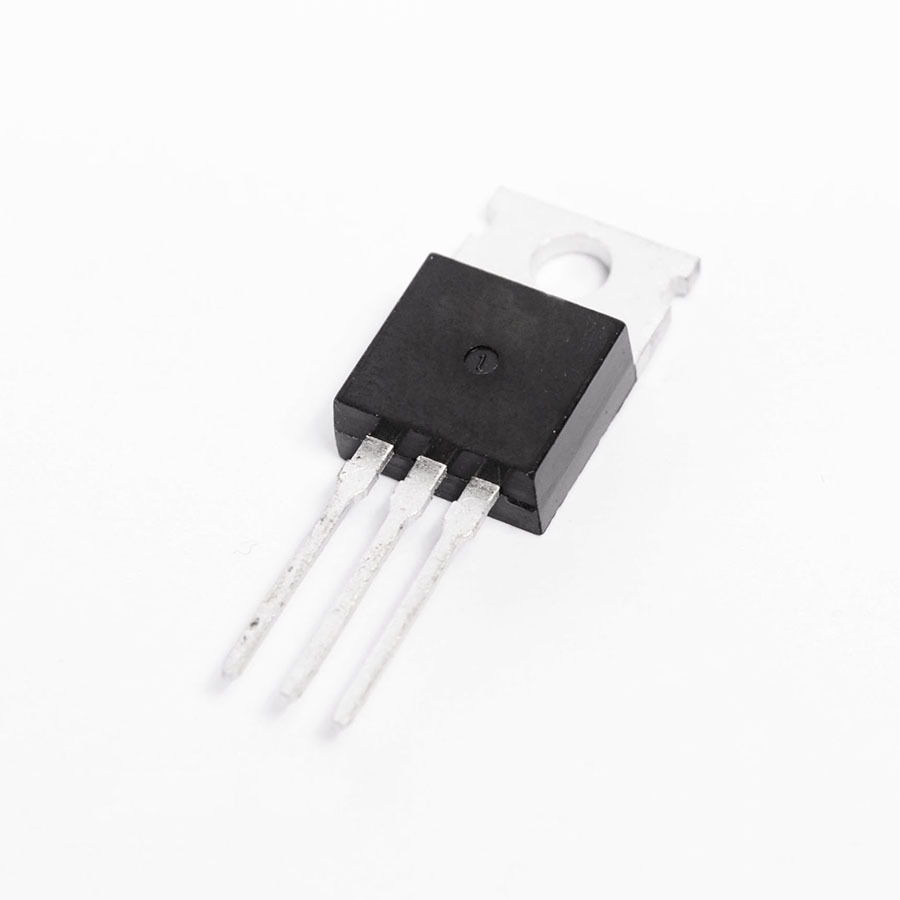

The Sanken 2SC2315 is a silicon NPN bipolar junction transistor (BJT) housed in a SOT78 package. This transistor is suitable for a variety of general-purpose amplification and switching applications.
Key electrical characteristics include a maximum collector current of 6A and a minimum forward current transfer ratio (hFE) of 800. The maximum collector-base voltage is 80V, and the maximum collector-emitter voltage is 60V. It operates within a temperature range of -55°C to 140°C.
The SOT78 package is a through-hole type, making it suitable for breadboarding and traditional PCB assembly. The transistor's specifications suggest it is designed for moderate power applications where a robust current handling capability is required.
This component is manufactured by Sanken and is part of the NPN transistor family. Its specifications make it a versatile option for designers working on power supply circuits, audio amplifiers, and switching regulators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector current for the 2SC2315 transistor is 6A.
The minimum forward current transfer ratio (hFE) for the 2SC2315 is 800.
The maximum collector-base voltage for the 2SC2315 is 80V.
The 2SC2315 transistor is supplied in a SOT78 package.
The maximum operating temperature for the 2SC2315 is 140°C.
