| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
228 pcs
|
228 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present |

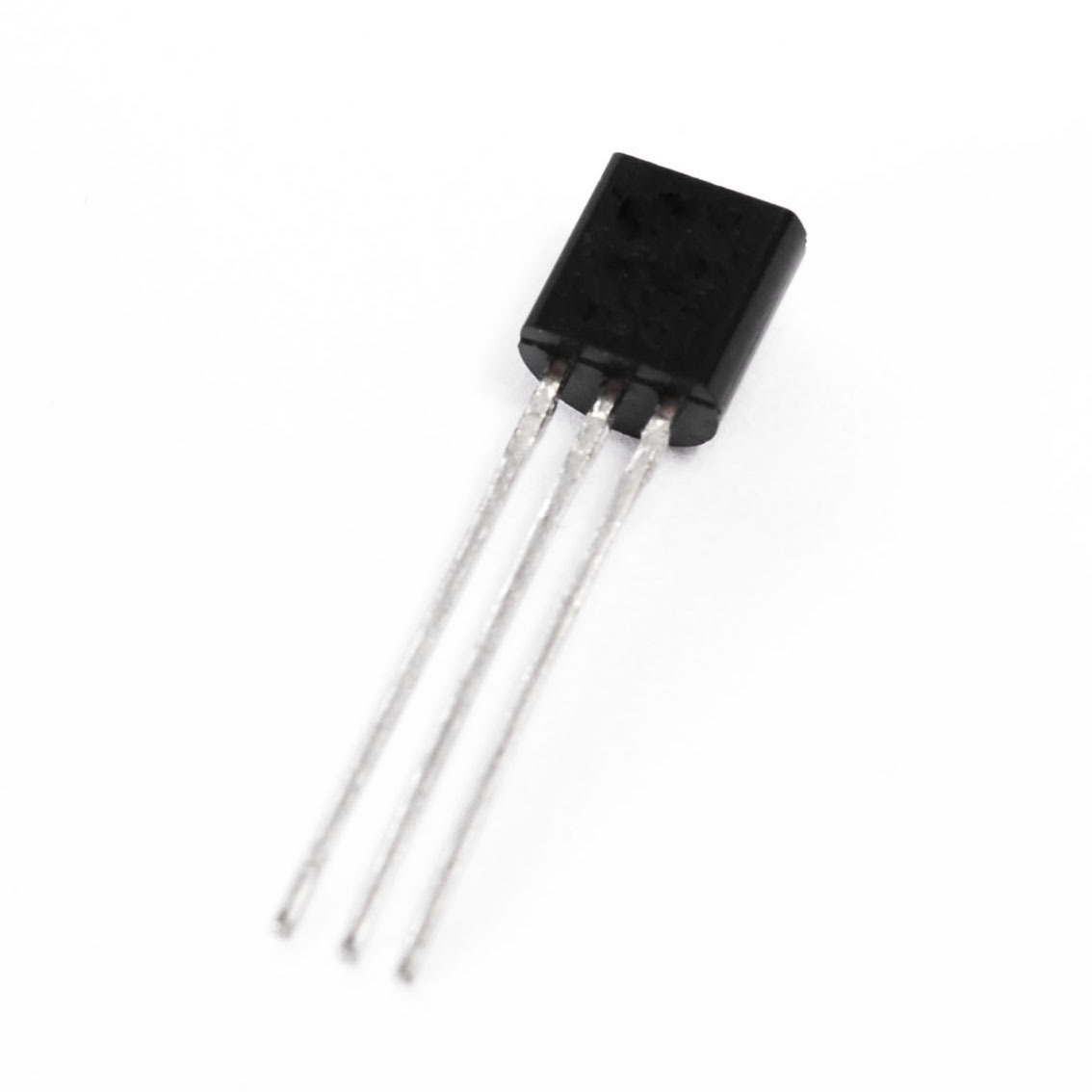

The 2SC2228 is a Silicon NPN Transistor from Sanyo Semiconductor, designed for general-purpose amplification and switching applications. It is housed in a standard TO-92 through-hole package, making it easy to integrate into circuit boards.
Key electrical characteristics include a maximum collector-emitter voltage (Vce) of 160V and a maximum collector current (Ic) of 50mA. The transistor exhibits a minimum transition frequency (Ft) of 50MHz, indicating its suitability for moderate frequency applications. The minimum forward current transfer ratio (hFE) is specified at 320, ensuring adequate signal amplification.
With a maximum collector power dissipation of 0.75W and a maximum operating junction temperature of 150°C, the 2SC2228 is designed for reliable operation within its specified limits. The TO-92 package is a common choice for through-hole mounting, facilitating assembly and maintenance in electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vce) for the 2SC2228 is 160V.
The maximum collector current (Ic) for the 2SC2228 is 50mA.
The minimum transition frequency (Ft) for the 2SC2228 is 50MHz.
The minimum forward current transfer ratio (hFE) for the 2SC2228 is 320.
The 2SC2228 transistor is supplied in a TO-92 package.
The maximum operating junction temperature (Tj) for the 2SC2228 is 150°C.
