| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Storage Temperature |

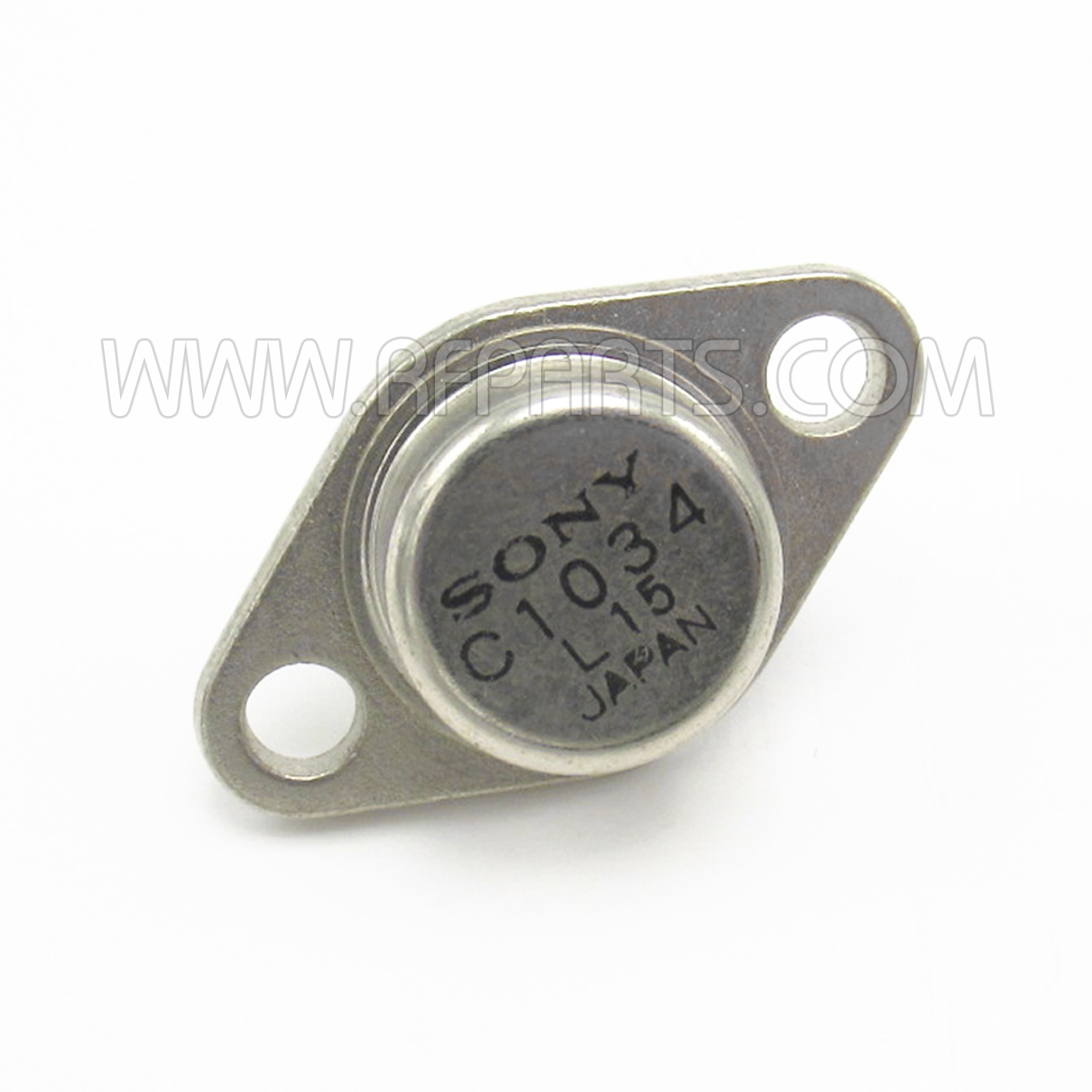

The Sony 2SC1034 is a silicon NPN bipolar junction transistor designed for power applications. It comes in a TO-66 package, providing a robust solution for demanding circuits.
Key electrical characteristics include a collector-base voltage (V CBO) of 1100 V with the emitter open, and an emitter-base voltage (V EBO) of 13 V with the collector open. The continuous collector current (I C) is rated at 1 A, and the collector power dissipation (P C) is 25 W. The transistor operates within a junction temperature range of 150°C and has a storage temperature range of -65°C to 150°C.
This component is noted as New Old Stock (NOS) and is no longer available for export. Its high breakdown voltage makes it particularly suitable for horizontal deflection output applications, commonly found in older display technologies.
Additional specifications include a moisture sensitivity level of 1 (unlimited) and REACH unaffected status. The RoHS status is listed as RoHS3 Compliant, though this data is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-base voltage (V CBO) is 1100 V when the emitter is open.
The maximum continuous collector current (I C) is 1 A.
The collector power dissipation (P C) is 25 W.
The junction temperature is 150°C, and the storage temperature ranges from -65°C to 150°C.
The 2SC1034 transistor comes in a TO-66 package.
