| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,079 pcs
|
9079 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage | |
| Weight |
The 2SB1647 is a PNP Darlington bipolar transistor from Sanken Electric. It features a collector-emitter breakdown voltage of -150V and a continuous collector current rating of -15A, with a maximum power dissipation of 130W. The DC current gain ranges from 5000 to 30000 at 10A, providing high amplification in a single device.
This transistor is designed for audio amplifier output stages and series regulator applications. It offers a low collector-emitter saturation voltage of -2.5V maximum at 10A, and a typical current gain bandwidth product of 45MHz. The complementary NPN type is the 2SD2560.

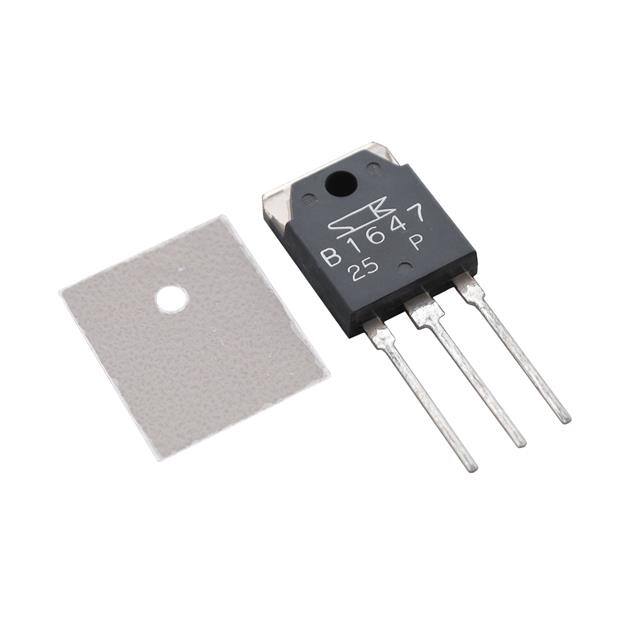

The 2SB1647 is housed in a TO-3P-3 (SC-65-3) through-hole package, weighing approximately 6g. It supports a maximum junction temperature of 150°C and a storage temperature range of -55°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $2.37 | $2.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-150V minimum.
TO-3P-3 (SC-65-3) through-hole package.
Maximum junction temperature is 150°C. Storage temperature range is -55 to +150°C.
RoHS status is marked as compliant but unverified.
5000 to 30000 at IC=-10A, VCE=-4V.
VCE(sat) max -2.5V at IC=-10A, IB=-10mA.
Yes, the 2SD2560 is the complementary NPN Darlington.
