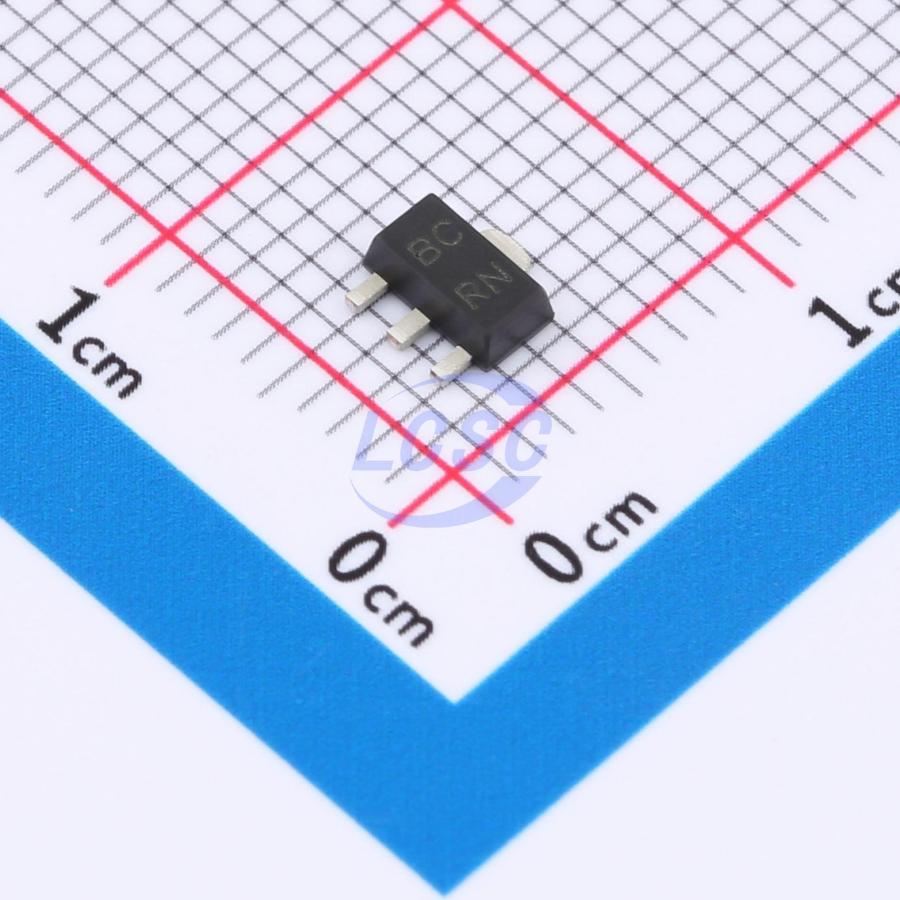

2SB1188-R The 2SB1188-R is a PNP Silicon Epitaxial Planar Transistor in a SOT-89 package. It offers low VCE(SAT) and is RoHS compliant with Halogen-free.
Mfr Part #:

2SB1188-R

Available from 1 distributors
Mfr Name: NA
NA
The 2SB1188-R is a PNP Silicon Epitaxial Planar Transistor in a SOT-89 package. It offers low VCE(SAT) and is RoHS compliant with Halogen-free.
✓ Total Stock: 119 pcs
$ Price Range: $0.85

2SB1188-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
119 pcs
On Request
119 pcs On Request 1 On Request On Request 1717+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SB1188-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Junction Temperature
Lead Spacing
Lead Style
Mounting Type
Power Dissipation
SVHC Present
Storage Temperature
View Similar Products (0)

2SB1188-R Description

Short technical summary and product information.

The 2SB1188-R is a PNP Silicon Epitaxial Planar Transistor designed for various electronic applications. It features a low Collector-Emitter Saturation Voltage (VCE(SAT)) and serves as a complement to the 2SD1766.



Key electrical characteristics include a minimum DC Current Gain (hFE) of 82 and a maximum of 390 at VCE = -3V and IC = -0.5A. The Collector-Emitter Breakdown Voltage (VCEO) is -32V, and the Collector Current (IC) is rated up to -2A continuously.



Packaged in a SOT-89 case, this transistor is suitable for surface mounting. The molding compound has a UL 94V-0 flammability rating, and the terminals are tin-plated for good solderability. It operates within a junction temperature range of -55°C to +150°C.

2SB1188-R Quick Information

Product Type: Transistor
Series: 2SB1188
Canonical Name: PNP Silicon Epitaxial Planar Transistor
Subcategory: Single PNP

2SB1188-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2SB1188-R Estimated Pricing

Qty Low High
1+ $0.85 $0.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SB1188-R Features

  • Low Collector-Emitter Saturation Voltage (VCE(SAT))
  • Complementary to 2SD1766
  • RoHS compliant with Halogen-free
  • SOT-89 surface mount package
  • Rated for -32V Collector-Emitter Breakdown

2SB1188-R Applications

  • Ideal for general-purpose switching circuits.
  • Suitable for audio amplifier output stages.
  • Used in motor driver interface boards.
  • Designed for RF signal amplification tasks.
  • Compatible with complementary NPN transistor pairs.

2SB1188-R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum continuous collector current for the 2SB1188-R?

The maximum continuous collector current is 2A.

What is the collector-emitter breakdown voltage?

The collector-emitter breakdown voltage is 32V minimum.

What package type does the 2SB1188-R use?

The component utilizes a SOT-89 surface mount package.

What is the DC current gain range at 0.5A collector current?

The DC current gain ranges from 82 to 390 when tested at VCE = -3V and IC = -0.5A.

Is the 2SB1188-R halogen-free?

Yes, the component is halogen-free according to datasheet specifications.

What is the maximum junction temperature?

The maximum operating junction temperature is 150°C.
