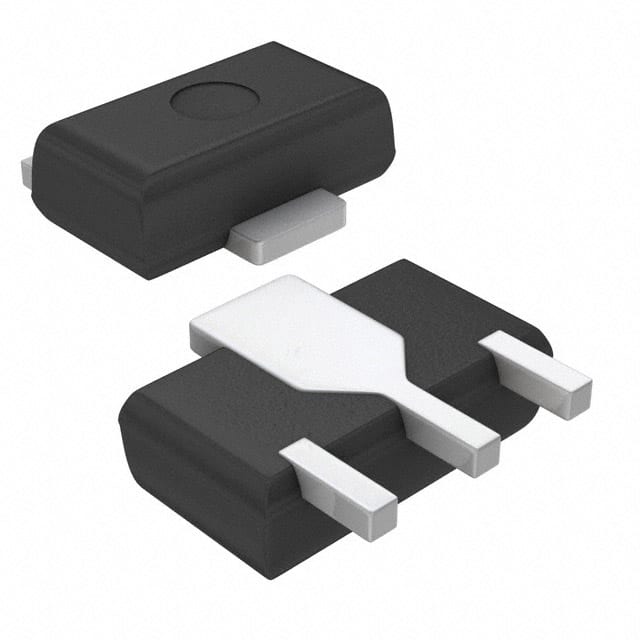

2SB0766ARL PNP bipolar transistor rated for -50V collector-emitter voltage and -1A collector current. Surface mount MiniP3-F1 package.
Mfr Part #:

2SB0766ARL

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
PNP bipolar transistor rated for -50V collector-emitter voltage and -1A collector current. Surface mount MiniP3-F1 package.
✓ Total Stock: 80 pcs

2SB0766ARL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SB0766ARL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

2SB0766ARL Description

Short technical summary and product information.

The 2SB0766ARL is a PNP epitaxial planar bipolar junction transistor from Panasonic Electronic Components, designed for low-frequency output amplification. It features a maximum collector-emitter voltage (Vceo) of -50V and a continuous collector current (Ic) of -1A, with a peak current capability of -1.5A. The device offers a DC current gain (hFE) of 120 minimum at Vce = -10V, Ic = -500mA, and a transition frequency (fT) of 200MHz.



This transistor is housed in a MiniP3-F1 surface mount package (TO-243AA), enabling automated assembly and space-efficient designs. The collector power dissipation is rated at 1W under specified mounting conditions. Complementary NPN parts are 2SD0874 and 2SD0874A.



Typical applications include general-purpose switching and amplification in consumer and industrial electronics. The device is RoHS compliant per Directive 2002/95/EC.

2SB0766ARL Quick Information

Product Type: Bipolar Transistor
Canonical Name: 2SB0766ARL PNP Bipolar Transistor
Subcategory: Single PNP

2SB0766ARL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

2SB0766ARL Features

  • PNP epitaxial planar transistor design.
  • Rated for -50V collector-emitter voltage.
  • Continuous collector current of -1A.
  • Surface mount MiniP3-F1 package.
  • 200MHz transition frequency for amplification.

2SB0766ARL Applications

  • Low-frequency output amplification circuits.
  • General-purpose switching applications.
  • Consumer electronics power management.
  • Industrial control signal amplification.

2SB0766ARL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating of the 2SB0766ARL?

The maximum collector-emitter voltage (Vceo) is -50V.

What is the maximum collector current?

The maximum continuous collector current (Ic) is -1A, with a peak current (Icp) of -1.5A.

What package does the 2SB0766ARL come in?

It is supplied in a MiniP3-F1 surface mount package, also known as TO-243AA.

What is the operating temperature range?

The junction temperature (Tj) is rated up to 150°C, and the storage temperature range is -55°C to +150°C.

Is the 2SB0766ARL RoHS compliant?

Yes, the datasheet indicates compliance with RoHS Directive 2002/95/EC.
