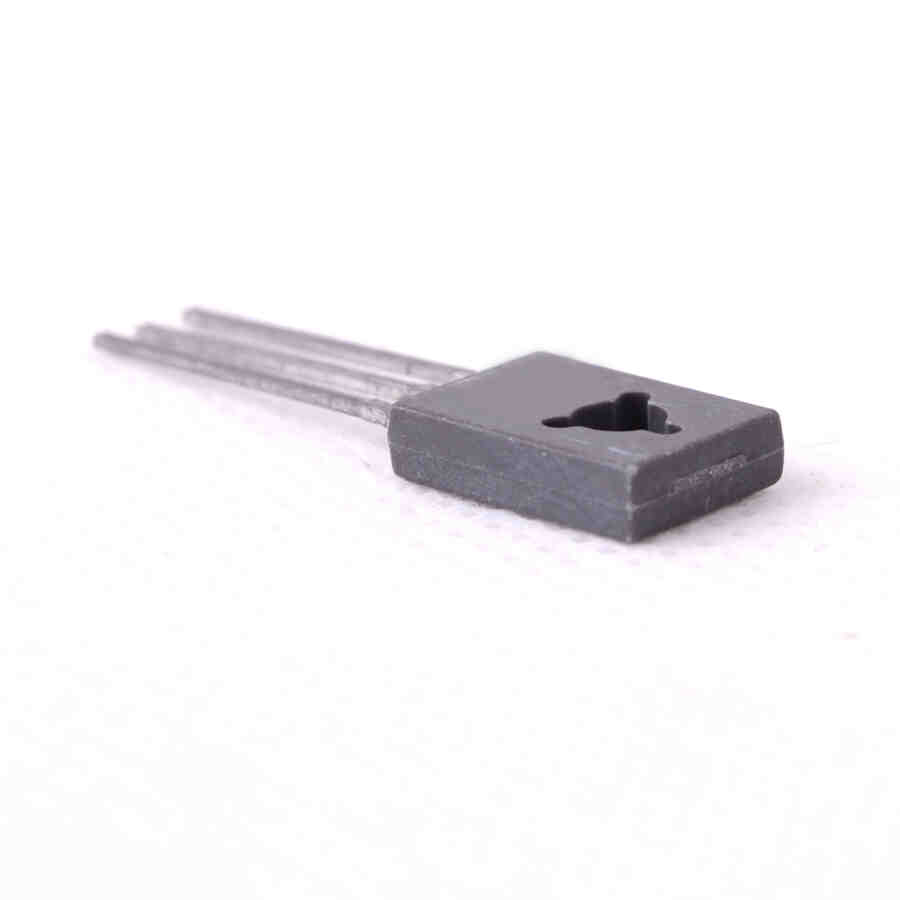

2SA1210 The Sanyo Denki 2SA1210 is a PNP Silicon Transistor in a TO126 package. It offers a transition frequency of 150MHz and a breakdown voltage of 200V.
Mfr Part #:

2SA1210

Available from 1 distributors
Mfr Name: Sanyo Denki
Sanyo Denki
The Sanyo Denki 2SA1210 is a PNP Silicon Transistor in a TO126 package. It offers a transition frequency of 150MHz and a breakdown voltage of 200V.
✓ Total Stock: 780 pcs
$ Price Range: $0.99

2SA1210 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
780 pcs
On Request
780 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2SA1210 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
View Similar Products (0)

2SA1210 Description

Short technical summary and product information.

The 2SA1210 from Sanyo Denki is a Silicon PNP Bipolar Junction Transistor (BJT) designed for general-purpose applications. It comes in a TO126 package, suitable for through-hole mounting.



Key electrical characteristics include a maximum collector current of 140mA and a maximum power dissipation of 1W. The transistor exhibits a minimum hFE (Forward Current Transfer Ratio) of 100 and a maximum of 400. Its breakdown voltages are rated at 200V for both Vbr CBO and Vbr CEO. The transition frequency (ft) is a minimum of 150MHz, indicating suitability for moderate frequency applications.



Operating temperature ranges up to 150°C, with a maximum junction temperature of 125°C. The collector capacitance is specified at 4pF. This component is designed for through-hole mounting and is not surface mountable.



Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are unverified. The 2SA1210 is an equivalent to the 2SA1210T.

2SA1210 Quick Information

Product Type: Transistor Silicon PNP
Canonical Name: 2SA1210 Transistor Silicon PNP
Subcategory: Single, Pre-Biased

2SA1210 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2SA1210 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

2SA1210 Features

  • PNP Silicon Transistor in TO126 package.
  • 200V collector-base and emitter-base breakdown voltage.
  • 140mA maximum collector current.
  • 150MHz minimum transition frequency.
  • Maximum operating temperature of 150°C.

2SA1210 Applications

  • Suitable for high-voltage switching applications.
  • Used in low-power amplifier circuits.
  • Ideal for signal switching in consumer electronics.
  • Applicable in automotive and industrial control systems.

2SA1210 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector current for the 2SA1210 transistor?

The maximum collector current for the 2SA1210 is 140mA.

What is the breakdown voltage of the 2SA1210 transistor?

The 2SA1210 transistor has a breakdown voltage of 200V for both collector-base (Vbr CBO) and collector-emitter (Vbr CEO).

What is the transition frequency of the 2SA1210 transistor?

The transition frequency (ft) of the 2SA1210 transistor is a minimum of 150MHz.

What is the operating temperature range for the 2SA1210 transistor?

The maximum operating temperature for the 2SA1210 transistor is 150°C.

What package type is the 2SA1210 transistor supplied in?

The 2SA1210 transistor is supplied in a TO126 package.

Is the 2SA1210 transistor RoHS compliant?

The RoHS Status for the 2SA1210 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the 2SA1210 transistor?

The Moisture Sensitivity Level (MSL) for the 2SA1210 is 1 Unlimited.
