Mfr Part #:

2P18U3/20

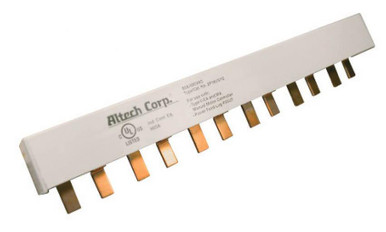

The Altech Corporation 2P18U3/20 is a bus bar designed for use with miniature molded circuit breakers. It features a 2-phase configuration with an 80A/480VAC rating.

Stock on Request

2P18U3/20 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Altech Corporation
Accessory Type	20 Pins
For Use With	Miniature Molded Circuit Breakers
SVHC Present	Not Present

View Similar Products (0)

2P18U3/20 Description

Short technical summary and product information.

The Altech Corporation 2P18U3/20 is a bus bar accessory designed for integration with miniature molded circuit breakers. This component is specified for a 2-phase system and supports a current rating of 80A at 480VAC. It has a cross-sectional area of 18mm² and is equipped with 20 pins, featuring standard pole spacing for reliable connections.

Manufactured by Altech Corporation, a company founded in 1984 and known for its industrial automation components, this bus bar is part of their accessory line. Altech Corporation is ISO 9001:2015 certified, indicating a commitment to quality in their manufacturing processes. The 2P18U3/20 is suitable for applications requiring efficient power distribution within control panels and electrical systems utilizing compatible circuit breakers.

2P18U3/20 Quick Information

Product Type: Bus Bar

Canonical Name: Altech Corporation 2P18U3/20 Bus Bar

Subcategory: Accessories

2P18U3/20 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

2P18U3/20 Features

2 Phase bus bar for circuit breakers.
Rated for 80A at 480VAC.
Features 18mm² cross-section.
Includes 20 pins with standard spacing.
Designed for miniature molded circuit breakers.

2P18U3/20 Applications

Used in power distribution systems.
Suitable for control panel wiring.
Facilitates circuit breaker connections.
Ideal for industrial automation.

2P18U3/20 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the current rating of the 2P18U3/20 bus bar?

80A.

What is the voltage rating?

480VAC.

How many pins does the bus bar have?

20 pins.

What phase configuration does it support?

2-phase.

What is the conductor cross-section?

18mm².

Is this bus bar compatible with miniature circuit breakers?

Yes, it is designed for use with miniature molded circuit breakers.
