| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
119,792 pcs
|
119792 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Type | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Resistance | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The 2N4092 is an N-Channel JFET (Junction Field-Effect Transistor) manufactured by Microchip Technology. It is designed for general-purpose switching and amplification applications requiring high input impedance.
Electrical specifications include a drain-source breakdown voltage of 40V, typical on-resistance of 50Ω, input capacitance of 16pF at 20V VDS, and typical drain current of 15mA at VDS=20V. The device can dissipate up to 360mW of power and operates over a junction temperature range of -65°C to 175°C.

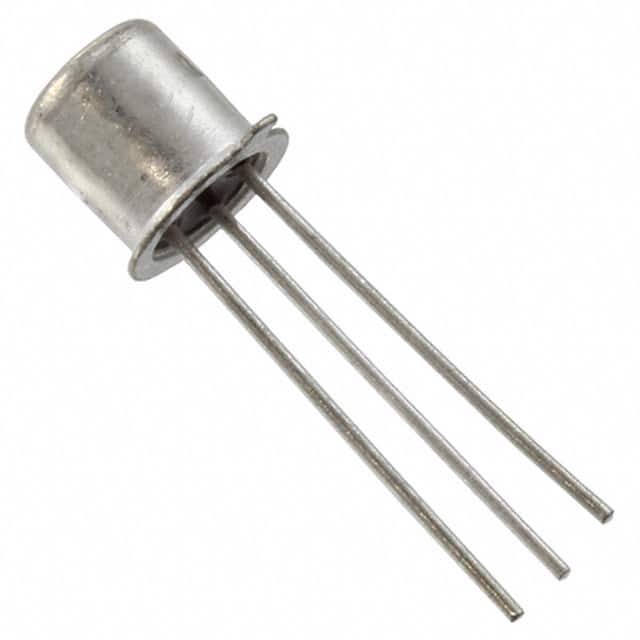

The 2N4092 is offered in a through-hole TO-206AA / TO-18-3 metal can package, with the supplier device package designated as TO-18. This robust metal can package provides reliable performance in demanding environments.
Typical applications include analog switching, amplifier input stages, and voltage-controlled resistor circuits. The low input capacitance makes it suitable for high-frequency signal processing.
| Qty | Low | High |
|---|---|---|
| 1+ | $35.39 | $35.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through-hole TO-18 metal can (TO-206AA / TO-18-3).
-65°C to 175°C (junction).
RoHS3 compliant (unverified).
40V.
50Ω.
360mW.
16pF at 20V VDS.
