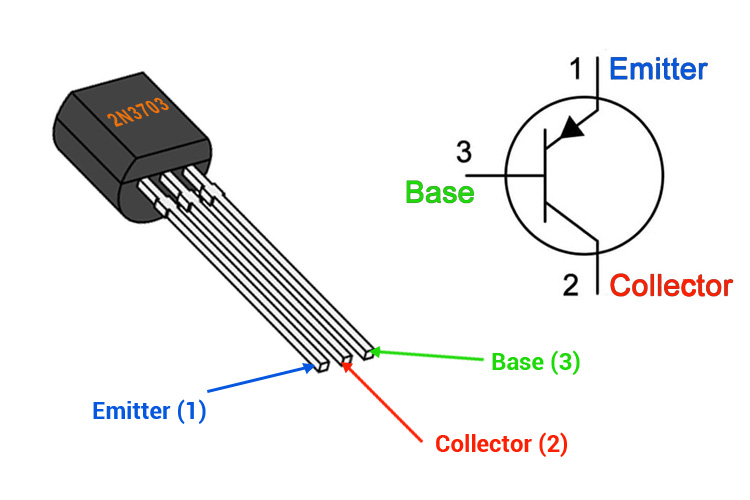

The 2N3703 is a general-purpose PNP bipolar junction transistor (BJT) designed for small signal switching and amplification applications. It is housed in a TO-92 package.
Key electrical characteristics include a maximum collector-emitter voltage (VCE) of -30V and a maximum collector current (IC) of 500mA. The DC current gain (hFE) ranges from 30 to 150, indicating its amplification capability. The transition frequency (fT) is 100MHz, making it suitable for moderate frequency applications. The operating and storage temperature range is from -55°C to +150°C.
This transistor operates as a PNP type, meaning it turns on when a low or 0V is applied to the base. It is often used in circuits requiring a negative voltage supply or for switching applications where a low base voltage is needed to enable current flow from emitter to collector.
Equivalent transistors include 2N3702, BC108, BC558, 2N3072, S8550, 2SA1943, and BC556, providing design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage for the 2N3703 is -30V.
The maximum continuous collector current for the 2N3703 is 300mA.
The DC current gain (hFE) for the 2N3703 ranges from 30 to 150.
The 2N3703 transistor can operate in a temperature range of -55°C to +150°C.
The 2N3703 transistor is supplied in a TO-92 package.
