2N2920

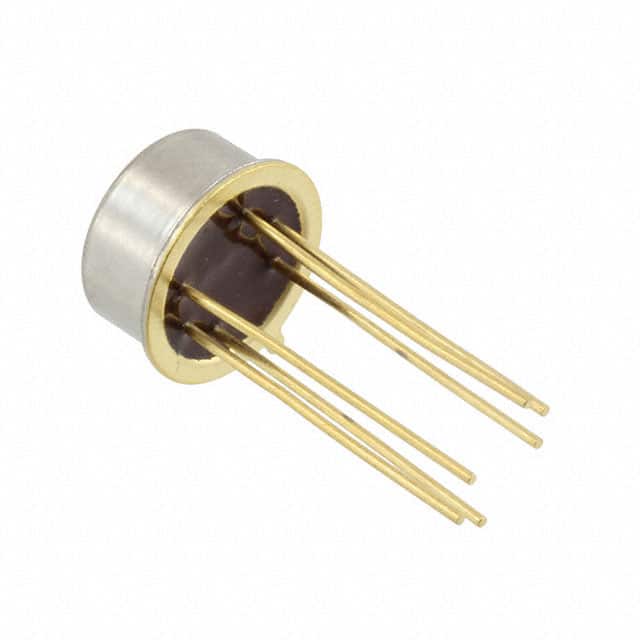

The 2N2920 is a dual NPN bipolar junction transistor array manufactured by Microchip Technology. It is designed for general-purpose switching and amplification applications requiring two matched NPN transistors in a single package. The device is rated for a collector-emitter voltage (VCEO) of 60V and a continuous collector current (IC) of 30mA. It offers a minimum DC current gain (hFE) of 300 at a test condition of Ic=1mA and Vce=5V, ensuring consistent performance in low-current applications. The collector-emitter saturation voltage is typically 300mV at Ib=100µA and Ic=1mA. Power dissipation is rated at 350mW, and the junction temperature can reach up to 200°C. The transistors are housed in a TO-78-6 metal can package with through-hole mounting, providing robust mechanical and thermal performance. This component is suitable for use in signal processing, driver stages, and other circuits where dual NPN transistors are required.
