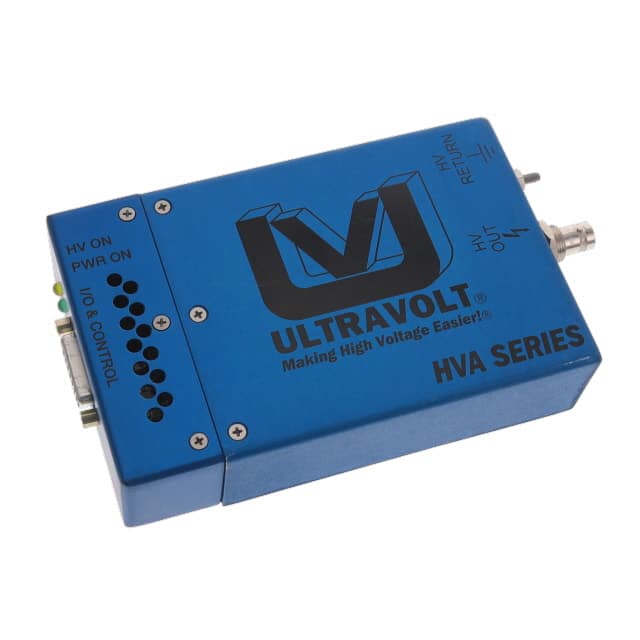

This Advanced Energy DC DC converter, part number 2HVA24-BP1-F-25PPM-SHV-5KV, is an enclosed unit designed for chassis mounting. It operates at 21.6V with a current rating of 250µA and a power output of 500mW.
The converter has a single output and is suitable for ITE (Commercial) applications. Its dimensions are 152.4mm x 96.8mm x 31.8mm. The operating temperature range is from 10°C to 45°C.
This component is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is designed for reliable performance in various commercial electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 21.6V.
The current rating is 250µA.
The power output is 500mW.
The dimensions are 152.4mm x 96.8mm x 31.8mm.
The operating temperature range is 10°C to 45°C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
