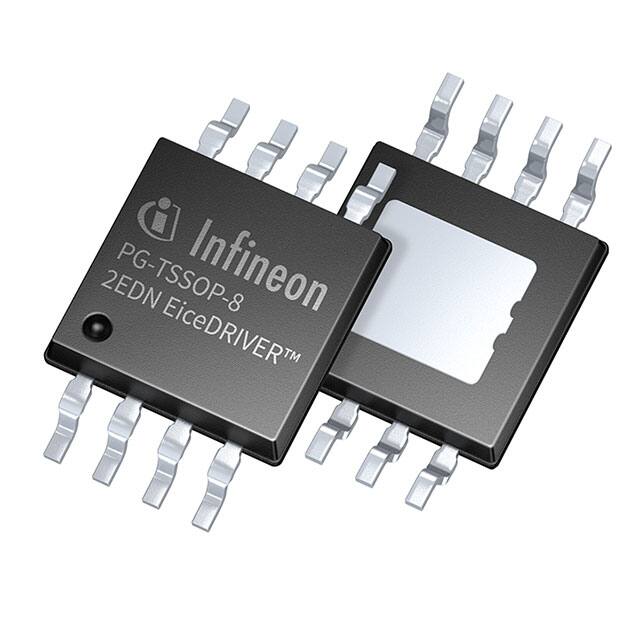

The Infineon Technologies 2EDN8534RXTMA1 is a dual-channel low-side gate driver IC from the EiceDRIVER™ 2EDN family. It offers a peak output current of 5A for both source and sink operations, making it suitable for fast-switching applications.
Key electrical specifications include a typical propagation delay of 19 ns with an accuracy of +6/-4 ns. The device supports a supply voltage range of 4.5V to 20V and features UVLO options at 4V and 8V. It also provides active output voltage clamping and -12V input robustness.
This gate driver IC is housed in a PG-TSSOP-8 package, designed for surface mount applications. Its operating temperature range is -40°C to 150°C (TJ). The 2EDN8534RXTMA1 is well-suited for applications such as switch-mode power supplies, DC-DC power converters, and synchronous rectification stages.
Applications include switch-mode power supplies, DC-DC power converters, synchronous rectification stages, and power factor correction systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 20V.
It is available in a PG-TSSOP-8 surface-mount package.
The operating junction temperature range is -40°C to 150°C.
The peak output current is ±5A for source and sink.
The typical propagation delay is 19ns.
It offers UVLO options of 4V and 8V.
The output rise time is 8.6ns and fall time is 6ns.
