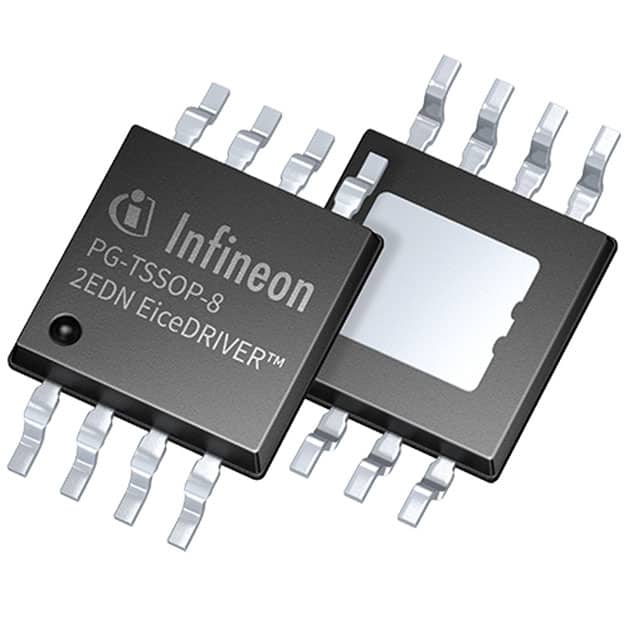

The Infineon Technologies 2EDN7524RXTMA1 is an advanced dual-channel gate driver IC suitable for driving logic and normal level MOSFETs, as well as IGBTs and GaN Power devices. It supports OptiMOS™, CoolMOS™, Standard Level MOSFETs, and Superjunction MOSFETs.
Key electrical specifications include a supply voltage range of 4.5V to 20V, independent channels with 5A current capability each, and a non-inverting input type. The device features fast slew rates of 5 ns and a propagation delay of 17 ns, with channel-to-channel delay accuracy of 1 ns, enabling parallel use for 10A capability. It also includes under-voltage lockout (UVLO) options at 4.2V and 8V, and -10V control input robustness for enhanced system stability.
This gate driver is designed for ruggedness, featuring 5A reverse current robustness. The operating temperature range is -40°C to 150°C (TJ). It is housed in a compact PG-TSSOP-8 package, designed for surface mount installation.
Typical applications include server SMPS, telecom SMPS, DC-to-DC converters, power tools, industrial SMPS, motor control, and solar SMPS. Example topologies include single and interleaved PFC, LLC, and ZVS with pulse transformers, as well as synchronous rectification.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 150°C (TJ).
The 2EDN7524RXTMA1 is available in the PG-TSSOP-8 package.
The supply voltage range is 4.5V to 20V.
Each of the two independent channels can output 5A.
It features 5 ns slew rates and 17 ns propagation delay, with 1 ns channel-to-channel delay accuracy.
Yes, it offers 4.2V and 8V UVLO options.
