| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,842 pcs
|
1842 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
113 pcs
|
113 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Voltage | |
| Power Consumption | |
| Propagation Delay | |
| Voltage | |
| Voltage Rating |
The Infineon 2ED020I12-FI is a high-voltage, high-speed Dual IGBT Driver IC. It is designed to operate fully up to ±1.2 kV, making it suitable for demanding power applications. The device features a power supply operating range from 14 to 18 V and provides gate drive currents of +1 A for the high side and -2 A for the low side.
Key electrical characteristics include matched propagation delay for both channels and high dV/dt immunity, ensuring reliable switching performance. It also offers low power consumption and compatibility with 3.3 V and 5 V TTL inputs. The IC includes features like floating high-side driver, undervoltage lockout for both channels, and interlocking inputs.

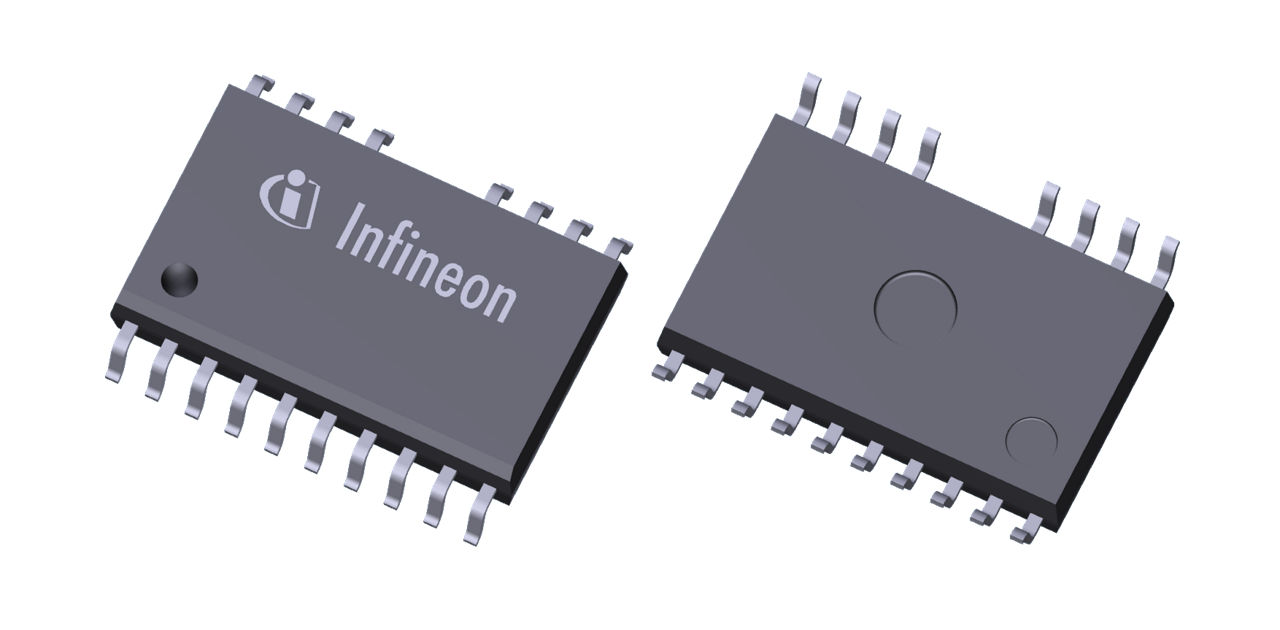

Packaged in a PG-DSO-18-2, the 2ED020I12-FI is supplied on tape and reel. It is RoHS3 compliant, indicating adherence to environmental standards for hazardous substances. This gate driver IC is a robust solution for power management and drives in various industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The power supply operating range for the 2ED020I12-FI is from 14 to 18 V.
The 2ED020I12-FI provides gate drive currents of +1 A for the high side and -2 A for the low side.
The 2ED020I12-FI is fully operational to ±1.2 kV.
The 2ED020I12-FI is available in the PG-DSO-18-2 package.
The 2ED020I12-FI is supplied on Tape & Reel.
