| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Operating Voltage | |
| Power Consumption | |
| Propagation Delay |

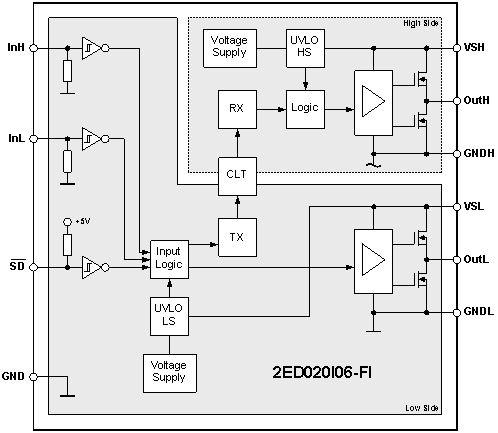

The Infineon 2ED020I06-FI is a Dual IGBT Driver IC from the Gate Driver ICs product family. It is designed for power management and drives, offering robust performance in demanding applications.
Key electrical specifications include an operational capability up to +/-650V and a power supply operating range from 14 to 18V. The device provides gate drive currents of +1A and -2A, with matched propagation delays for both channels. It also features high dV/dt immunity and low power consumption.
This IC supports 3.3V and 5V TTL compatible inputs and CMOS Schmitt-triggered inputs with pull-down. It includes interlocking inputs and a dedicated shutdown input with pull-up. The floating high side driver can be supplied directly or via a bootstrap diode and capacitor.
The 2ED020I06-FI is supplied in a PG-DSO-18-2 package, available on tape and reel. Its features make it suitable for various power electronics applications requiring efficient and reliable IGBT driving.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 14 to 18 V.
The device is fully operational to ±650 V.
The gate drive currents are +1 A source and –2 A sink.
The device is offered in a PG-DSO-18-2 package.
Yes, the inputs are 3.3 V and 5 V TTL compatible.
