| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

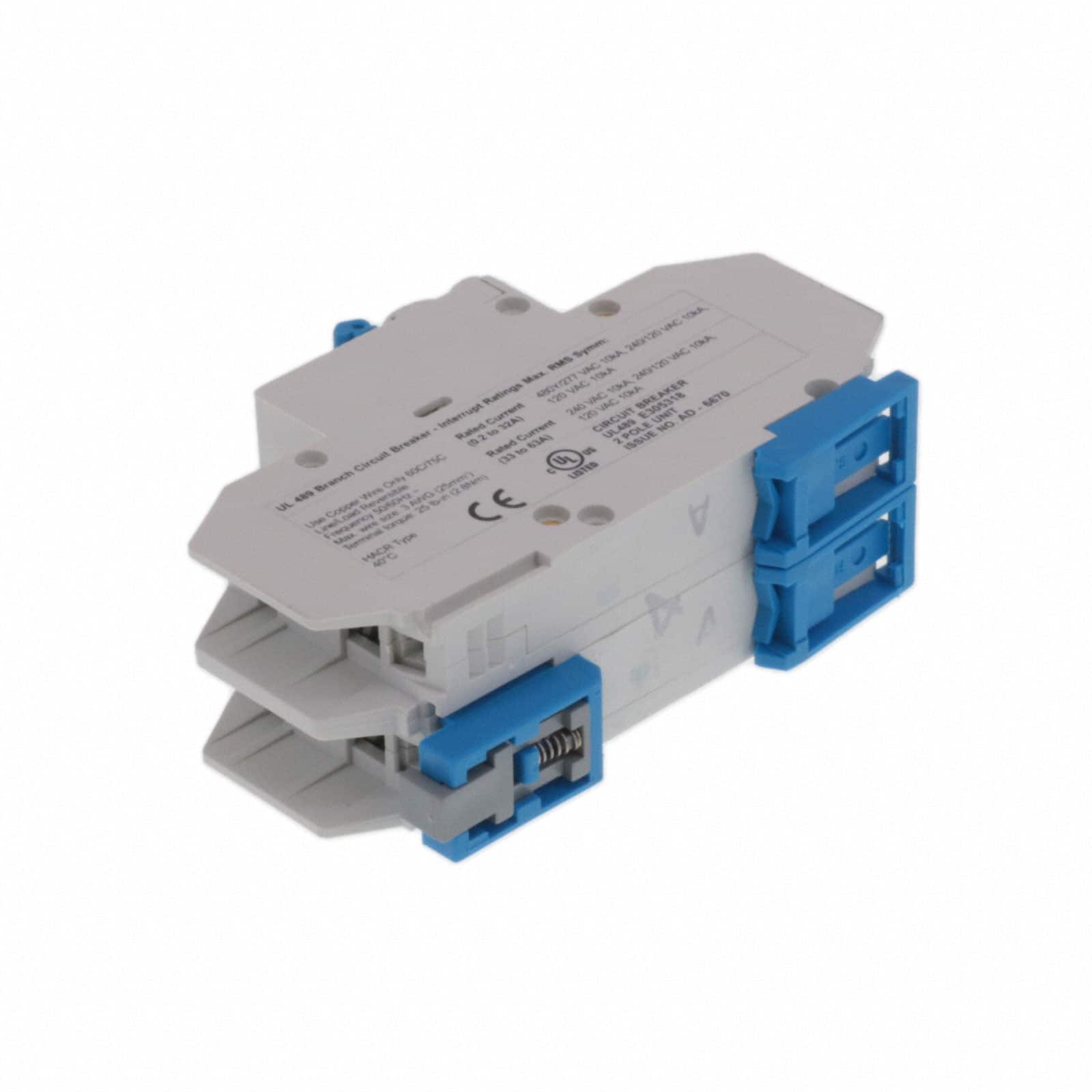

The Altech Corporation 2DU4L is a miniature circuit breaker designed for reliable circuit protection. This model features a 4A current rating and a 480V voltage rating, suitable for various AC applications.
It is a 2-pole device utilizing a thermal magnetic trip mechanism, providing protection against overcurrent and short circuits. The breaker is UL489 Listed and HACR Type rated for 40°C operation. It supports DIN rail mounting for easy installation in control panels and electrical enclosures.
Key specifications include a terminal protection degree of IP20 at the front, and it is designed for use with copper wire (60/75°C). The breaker offers a mechanical life of 10,000 cycles and an electrical life of 6,000 cycles.
This circuit breaker is compliant with RoHS3 standards and is REACH Unaffected. Its operating temperature range is -25°C to 60°C, with a calibration temperature of 40°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Altech Corporation 2DU4L circuit breaker has a current rating of 4A.
The voltage rating for the 2DU4L circuit breaker is 480V.
The 2DU4L circuit breaker has 2 poles.
The Altech 2DU4L is a Thermal Magnetic circuit breaker.
The 2DU4L circuit breaker is designed for DIN Rail mounting.
The operating temperature range for the 2DU4L circuit breaker is -25°C to 60°C.
The short circuit interrupting capacity for AC circuits is 10kA at 120, 240, and 277V, and 10kA at 120 and 240V.
