| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

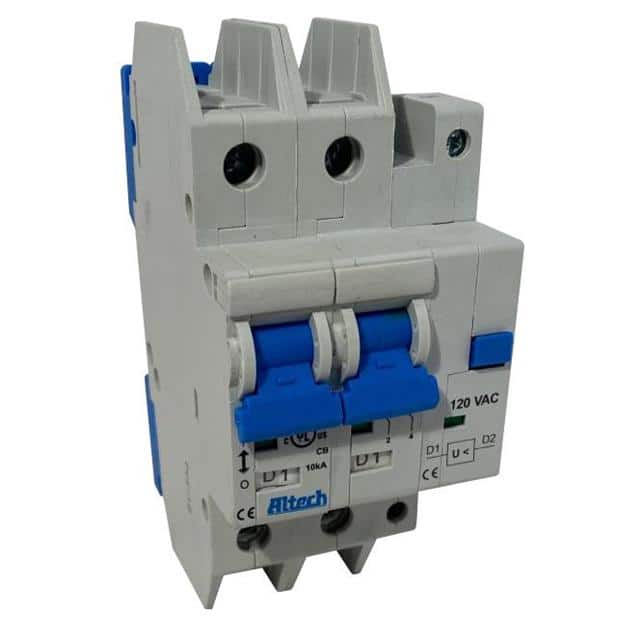

This Altech Corporation 2DU1L+UV120ACL is a thermal magnetic circuit breaker designed for reliable circuit protection. It offers a current rating of 120A and a voltage rating of 277V, suitable for various industrial and commercial applications.
The breaker features a lever actuator for easy operation and a DIN rail mounting type for quick and secure installation in control panels. With a 2-pole configuration, it provides protection for two circuits.
Key specifications include an interrupting capacity of 10kA, a calibration temperature of 40°C, and an ambient operating temperature range of -25°C to 60°C. The terminal size acceptability is 14-3 AWG with a torque rating of 2.0 N m.
Compliance includes UL489 recognition, with RoHS3, REACH, and MSL 1 status noted, though these require verification.
The current rating is 120A.
The voltage rating is 277V.
It has 2 poles.
It is a Thermal Magnetic circuit breaker.
It is designed for DIN Rail mounting.
The interrupting capacity is 10kA.
The ambient temperature range is -25°C to 60°C.
