| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

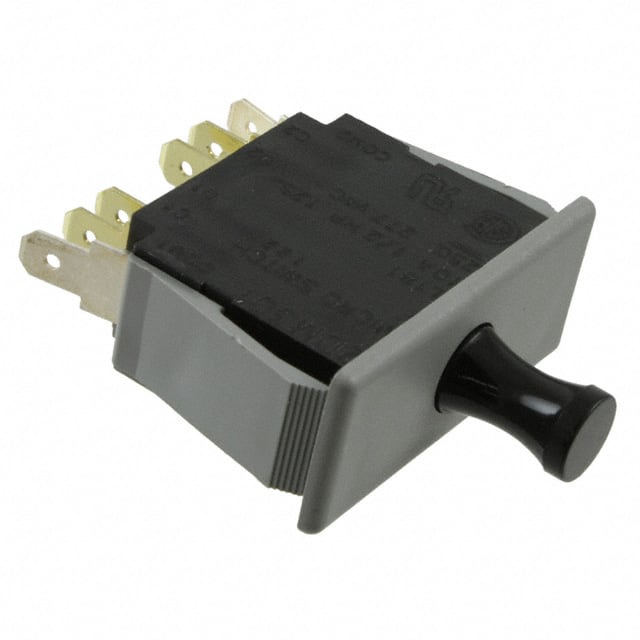

The Honeywell DM/DP Series 2DM301 is a basic snap-action switch designed for various applications requiring a compact and reliable component. It features a snap-in panel mount housing for easy installation and quick-connect terminals for reduced assembly time.
This switch offers a DPDT circuitry configuration with a 10A current rating at 125V. It has an operating force of 680gf and a release force of 170gf, with overtravel and differential travel specifications noted. The switch operates within a wide temperature range of -37°C to 82°C.
With a mechanical life of up to 1,000,000 operations, the DM/DP Series provides consistent performance. The DP Series specifically meets UL 508 requirements with extended electrical endurance for industrial applications. Potential uses include appliance door lights, door interlocks on HVAC equipment, and general indicator circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -37 °C to 82 °C.
The 2DM301 switch uses a snap-in panel mount.
The current rating is 10A AC.
The voltage rating is 125 V.
The 2DM301 switch has a DPDT circuit.
The mechanical life is up to 1,000,000 operations.
