| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

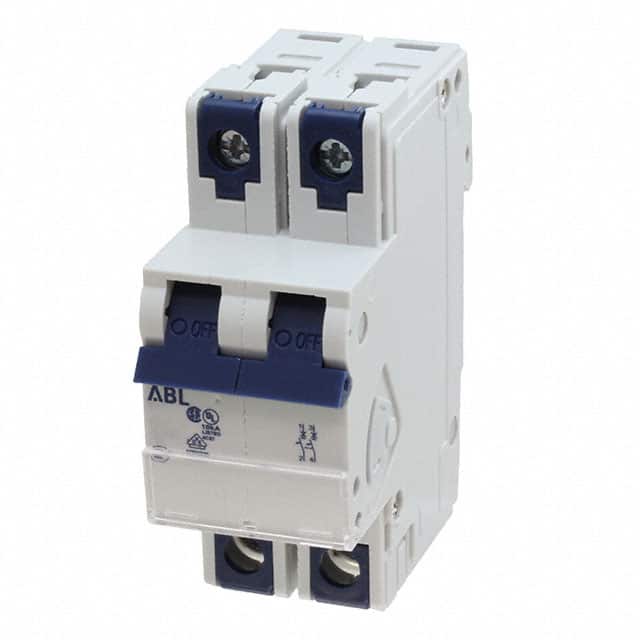

The Altech Corporation 2C6UR is a UR-Series supplementary protector, functioning as a 2-pole thermal magnetic circuit breaker. It is rated for a current of 6A and a voltage of 480V AC. The breaker features a DIN rail mounting type and a lever actuator.
Designed for reliable circuit protection, this breaker offers a short circuit withstand rating of 10 kA for currents up to 10A and 5 kA or 10 kA for currents from 8A to 63A, depending on backup protection. It operates within an ambient temperature range of -25°C to 55°C and has a calibration temperature of 30°C.
With an electrical life of 6000 switching cycles and a mechanical life of 10000 switching cycles, the 2C6UR is built for durability. It also meets vibration resistance standards of >15g and resistance to mechanical shocks of 25g @ 11ms. The device is recognized by CE, cURus, and UL1077 approval agencies.
The Altech Corporation 2C6UR circuit breaker has a current rating of 6A.
The 2C6UR circuit breaker is rated for 480V AC.
The 2C6UR circuit breaker has 2 poles.
The Altech 2C6UR is a thermal magnetic circuit breaker.
The 2C6UR circuit breaker features DIN rail mounting.
The 2C6UR circuit breaker is approved by CE, cURus, and UL1077.
The standard pack quantity for the 2C6UR is 6.
