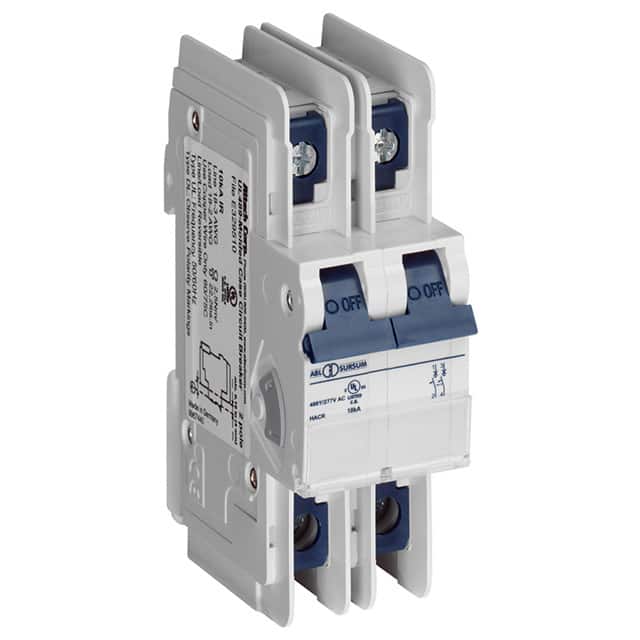

The Altech Corporation 2C25UL is a thermal magnetic circuit breaker designed for reliable circuit protection. This 2-pole breaker has a current rating of 25A and a voltage rating of 480V.
It is designed for DIN rail mounting, making installation straightforward in various electrical enclosures. The breaker offers a short circuit interrupting capacity of 10kA, ensuring safety under fault conditions. Its operating temperature range is -25°C to +70°C.
Key specifications include a mechanical life of 10,000 cycles and an electrical life of 6,000 cycles. The terminal size acceptability is Top: 18-3 AWG and Bottom: 18-2 AWG, with a recommended terminal torque of 2 Nm to 2.5 Nm.
This circuit breaker is suitable for applications requiring robust thermal magnetic protection, such as wiring protection, load protection, and control circuit applications.
The current rating is 25A.
The voltage rating is 480V.
It has 2 poles.
It is a Thermal Magnetic breaker.
It is designed for DIN Rail mounting.
The short circuit interrupting capacity is 10kA.
The operating temperature range is -25°C to +70°C.
