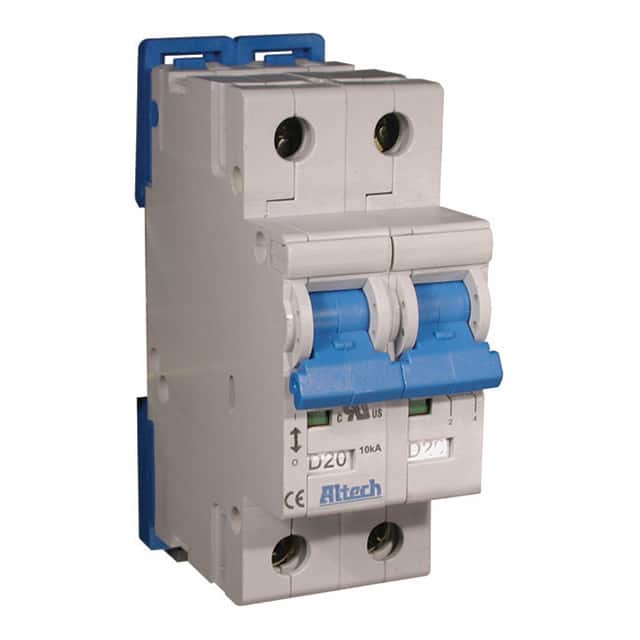

The Altech Corporation 2BU15R is a supplementary protector circuit breaker, designed for reliable protection of sensitive electronic equipment. This 2-pole device features a thermal magnetic trip mechanism and is rated for 15A.
With a voltage rating of 480Y/277VAC and a DC voltage rating of 48VDC, the 2BU15R is suitable for various applications. It offers a short circuit withstand rating of 10kA (UL) and an interrupting capacity of 10kA (IEC/EN).
The protector is designed for DIN rail mounting, with a width of 17.5mm per pole, making installation efficient. It supports copper wire connections (60/75°C) and has a terminal torque specification of 17.5 lb-in (2.0 Nm) for 14-3 AWG wire.
Key operational parameters include a calibration temperature of 30°C, an operating temperature range of -25°C to 60°C, and a storage temperature range of -25°C to 75°C. The device boasts an electrical life of 6,000 cycles and a mechanical life of 10,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 480Y/277 VAC and 48 VDC.
The current rating is 15A.
It is designed for DIN rail mounting.
The short circuit withstand rating (UL) is 10kA.
The operating temperature range is -25°C to 60°C.
The trip curve type is B.
