| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
985 pcs
|
985 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Type |

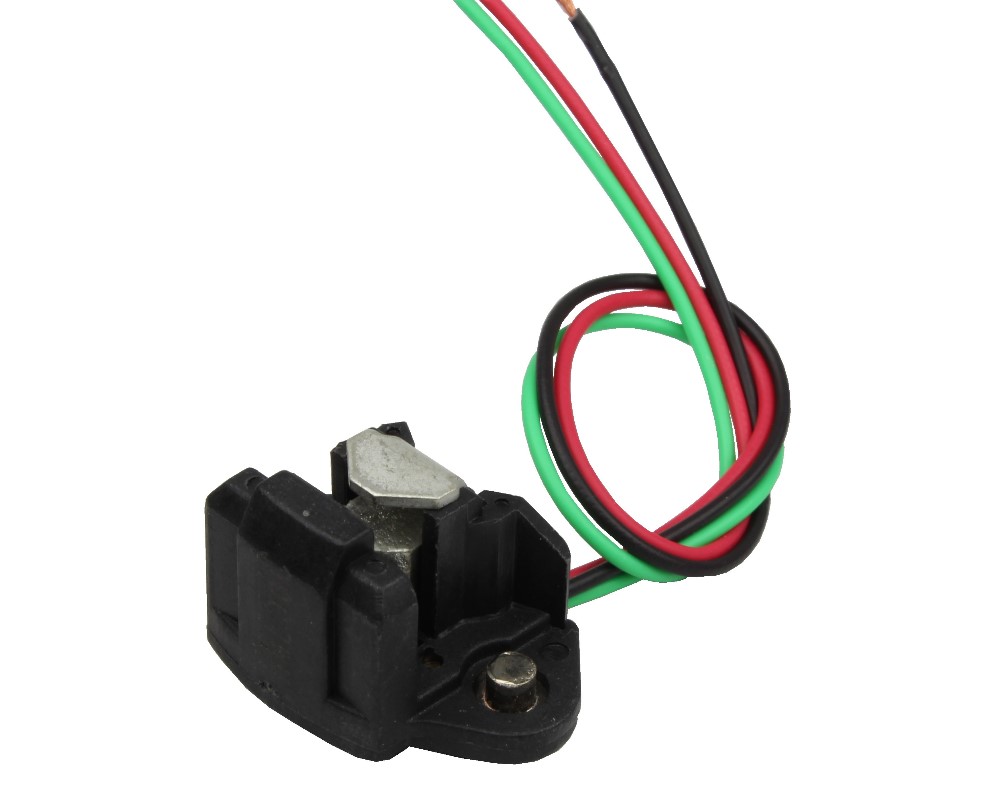

The Siemens 2AV56 is a Hall Effect Vane Sensor designed for applications requiring precise speed and position sensing. It features an NPN open-collector output and operates with a wide power supply range from 4.5V to 24V DC.
This sensor is built to withstand harsh environmental conditions, offering a broad operating temperature range of -40°C to +150°C. Its design ensures accuracy, endurance, and a clean output curve, making it suitable for demanding applications.
The 2AV56 is applicable in the automotive industry, control engineering, and for speed measurements. It can serve as a breaker-less trigger in electronic systems, RPM sensors, limit switches, position sensors, and shaft encoders. The sensor is comparable to other part numbers like 2AV54, 2AV16A, and 2AV51A, but verification for specific applications is recommended.
Key electrical characteristics include a fast rise and fall time of 2µs, an operation distance of 1.45mm, and a release distance of 2.29mm. The open-collector output supports up to 40mA, requiring an external pull-up resistor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 2AV56 operates with a power supply range of 4.5V to 24V.
The 2AV56 features an NPN (OC) output type.
The sensor can operate in temperatures ranging from -40°C to +150°C.
The rise time and fall time are both 2µs.
The operation distance is 1.45mm.
The release distance is 2.29mm.
The 2AV56 has an open-collector output capable of 40mA.
