| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

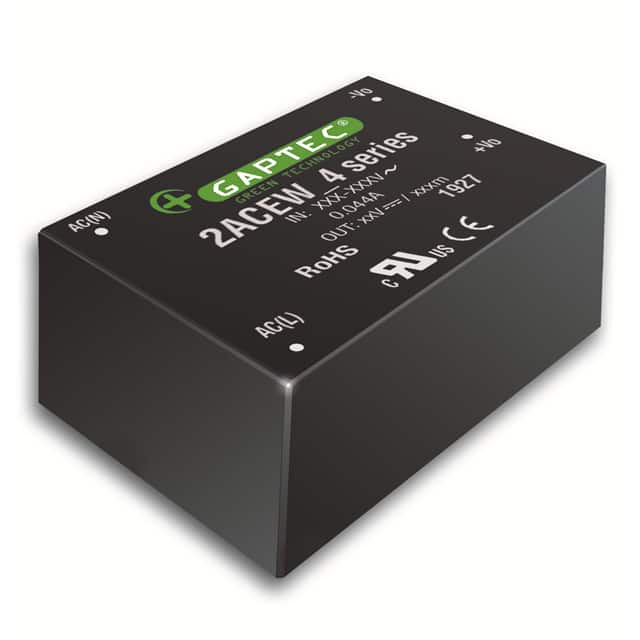

The GAPTEC Electronic 2ACEW_03S4 is a 2 Watt single output AC-DC converter from the 2ACEW_4 series. It features a universal input voltage range of 85-305VAC or 120-430VDC, making it suitable for various power applications. This isolated and regulated converter provides a 3.3V output at 600mA.
Key specifications include an efficiency of up to 65% and an operating temperature range of -40°C to +70°C. The converter offers 4kVAC isolation, over-current protection, and short-circuit protection. It meets CISPR32/EN55032 Class B standards and is safety approved to IEC62368, UL62368, and EN62368.
Designed with a compact size, the 2ACEW_03S4 is suitable for through-hole mounting in ITE (Commercial) applications. Its dimensions are 33.7mm in length, 22.2mm in width, and 18.0mm in height. The converter also accepts DC input voltage, offering dual-use functionality from the same terminals.
The output voltage is 3.3V.
The maximum output current is 600mA.
The input voltage range is 85 to 305 VAC or 120 to 430 VDC.
The efficiency is 65% typical.
The operating temperature range is -40°C to 70°C with derating.
The isolation voltage is 4kVAC.
It includes over-current protection (120%Io self-recovery) and short circuit protection (hiccup, continuous, self-recovery).
