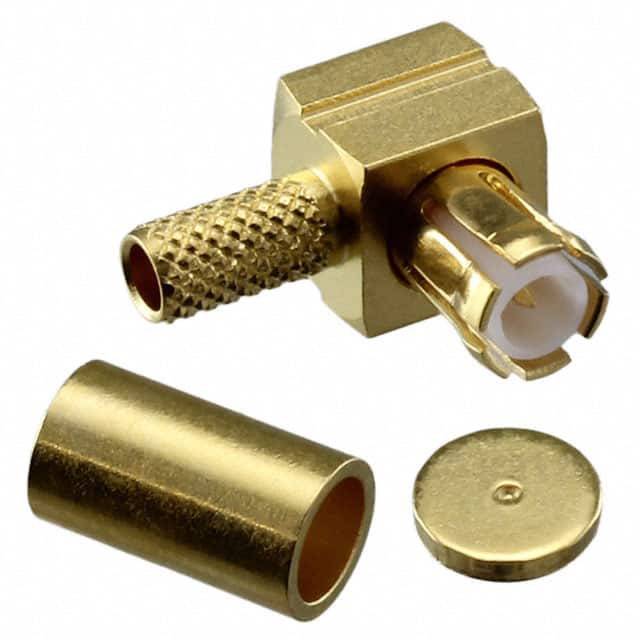

The Rosenberger 29S211-302L5 is an MCX right angle plug connector with a male pin contact. It features a 50 Ohm impedance and is rated for operation from DC to 6 GHz. The contact termination is solder, while the shield is terminated with a crimp. The connector uses a snap-on coupling mechanism.
Electrical performance includes a minimum return loss of 32 dB from DC to 2 GHz, 26 dB from 2 to 3 GHz, and 22 dB from 3 to 4 GHz. Maximum insertion loss is 0.05 x √f dB over DC to 4 GHz. Working voltage is 335 V rms, test voltage is 750 V rms, and maximum contact current is 1.5 A.
The connector body and center contact are made of brass with AuroDur® gold plating. The outer contact is CuBe with AuroDur® gold plating, and the dielectric is PTFE. This plug is designed for use with cable types RG-174A/U, RG-188A/U, and RG-316/U. It operates over a temperature range of -55°C to +155°C and supports a minimum of 500 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.78 | $6.78 |
| 10+ | $5.76 | $5.76 |
| 25+ | $5.59 | $5.59 |
| 50+ | $5.37 | $5.37 |
| 100+ | $5.10 | $5.10 |
| 250+ | $4.73 | $4.73 |
| 500+ | $4.47 | $4.47 |
| 1,000+ | $4.16 | $4.16 |
| 2,500+ | $3.90 | $3.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohm.
It is compatible with RG-174A, RG-188A, and RG-316 cables.
The temperature range is -55°C to +155°C.
A minimum of 500 mating cycles is supported.
The maximum frequency is 6 GHz.
Contacts are gold plated with AuroDur®.
