| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Type |

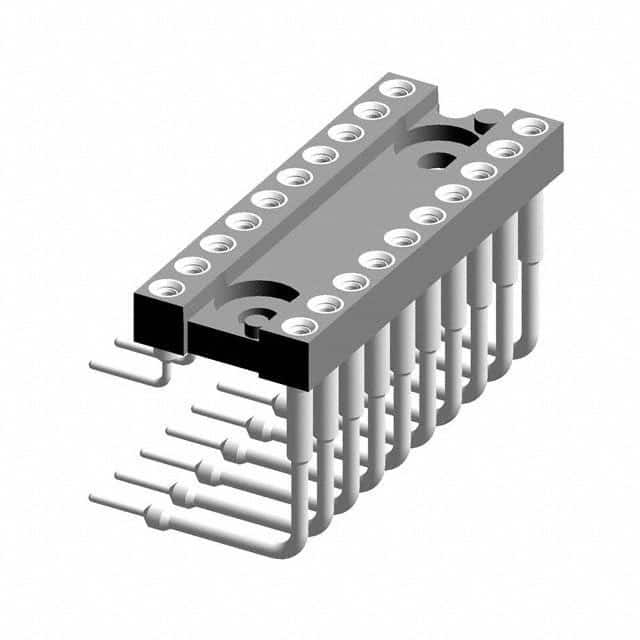

The Preci-Dip 299-83-320-10-001101 is a 20-position DIP IC socket arranged in a 2x10 grid with 2.54mm pitch and 0.3" (7.62mm) row spacing. It features beryllium copper contacts with a tin finish (29.5µin / 0.75µm thickness) for reliable electrical connectivity.
The socket uses a glass-filled PCT/polyester housing and a closed frame design. It supports an operating temperature range of -55°C to 125°C. Mounting is through hole with a right angle, horizontal orientation, and termination is via solder.
This component is suitable for applications requiring a robust, high-temperature DIP socket for prototyping or production use. The closed frame provides mechanical stability and protection for the IC during insertion and removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.35 | $11.35 |
| 21+ | $9.68 | $9.68 |
| 42+ | $9.29 | $9.29 |
| 105+ | $8.77 | $8.77 |
| 252+ | $8.00 | $8.00 |
| 504+ | $7.48 | $7.48 |
| 882+ | $6.86 | $6.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions arranged in a 2x10 grid.
The pitch is 2.54mm (0.100").
Through hole, right angle, horizontal mounting.
It operates from -55°C to 125°C.
Beryllium copper with a tin finish.
Yes, it features a closed frame design.
