| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Response Time | |
| Switching Voltage | |
| Termination Style |

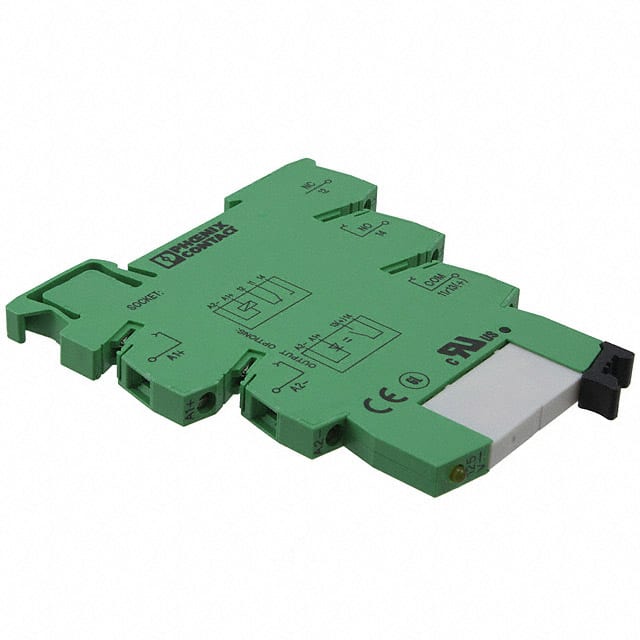

The Phoenix Contact 2980021 is a versatile relay module designed for general-purpose applications. It operates with a nominal coil voltage of 125V DC and features a single changeover (SPDT) contact configuration.
This module is built for reliability, offering a contact rating of 6A and a switching voltage of up to 250V AC/DC. The contact material is Silver Tin Oxide (AgSnO), known for its durability and performance.
Designed for ease of integration, the 2980021 utilizes screw terminals for connection and is suitable for DIN rail mounting. It operates within an ambient temperature range of -25°C to 60°C, making it adaptable to various industrial environments. The mechanical service life is approximately 10^7 cycles.
Key electrical specifications include a typical input current of 3 mA, a typical response time of 5 ms, and a typical release time of 8 ms. The module also includes features such as a lighted indicator and a socket.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal coil voltage is 125 V DC.
The limiting continuous current is 6 A.
It has 1 changeover contact (SPDT).
The maximum switching voltage is 250 V AC/DC.
The operating temperature range is -25°C to 60°C.
It is designed for DIN rail mounting.
It uses screw terminals for connection.
