| Category | |
| Manufacturer Name | |
| Accessory Type | |
| DC Resistance | |
| Dimensions | |
| For Use With | |
| Inductance | |
| Input Voltage | |
| Mounting Type | |
| Number of Turns | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Package / Case |

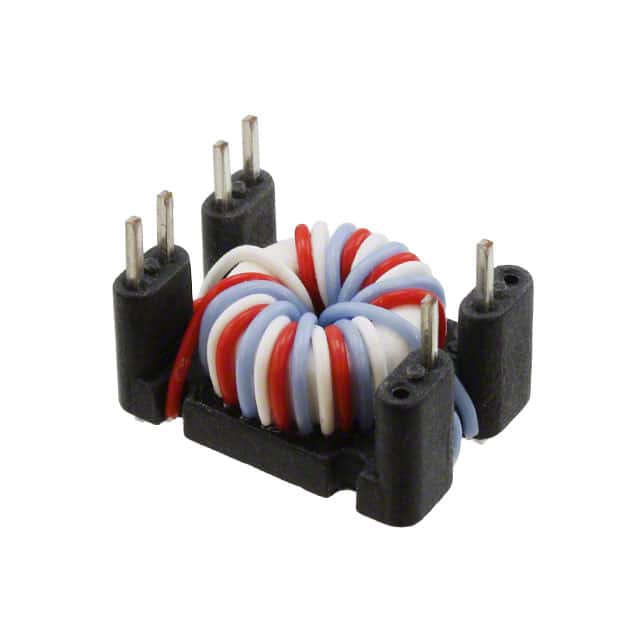

The Vicor 29768 is a PR Transformer, categorized as an accessory for power supplies. It is specifically designed for integration with Vicor Maxi, Mini, and Micro-Sized Modules, offering a robust solution for power conversion needs.
This transformer operates with a nominal input voltage of 375V and provides a nominal output voltage of 24V, delivering up to 300W of output power. It is built with a half-brick package, suitable for through-hole mounting, ensuring secure and reliable integration into various systems.
The transformer exhibits a typical inductance of 40 uH at 100 KHz and 1 VAC, with a typical DC resistance of 187 mOhm. It features 8 turns in its winding, contributing to its electrical characteristics. The operating temperature range for this component is -10°C to 100°C, making it suitable for a variety of environmental conditions.
Compliance information indicates RoHS3 compliance and Lead Free status, verified by the datasheet. The component is also rated for Moisture Sensitivity Level 1 (Unlimited) and REACH Unaffected status.
The inductance is 40 uH at 100 KHz and 1 VAC.
The DC resistance is 187 mOhm.
The nominal input voltage is 375V.
The nominal output voltage is 24V.
The output power is 300W.
The operating temperature range is -10°C to 100°C.
The package type is Half Brick.
