| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Depth | |
| Height | |
| Mounting Type | |
| Operate Time | |
| Operating Mode | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style | |
| Width |

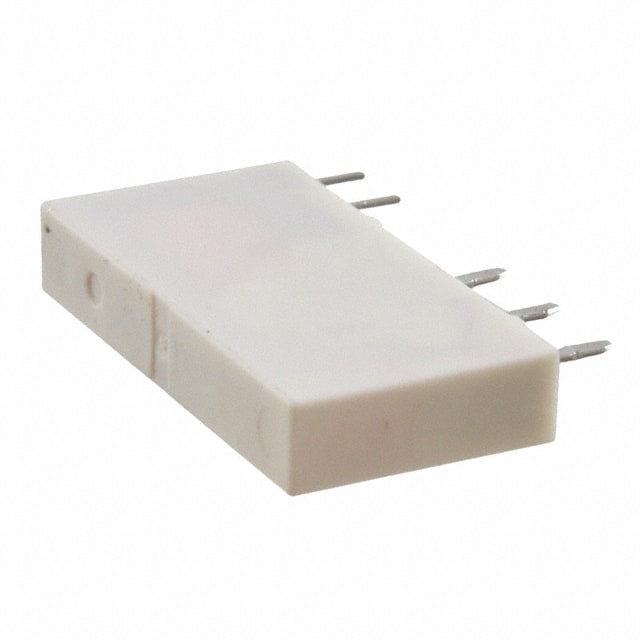

This Phoenix Contact 2961118 is a plug-in miniature relay with a single pole double throw (SPDT) contact form. It is designed for general purpose applications and operates with a 60VDC coil voltage, drawing a nominal current of 3 mA. The relay has a contact rating of 6A and can switch up to 250VAC or 250VDC.
The contact material is Silver Tin Oxide (AgSnO), known for its durability and performance in switching applications. The relay offers a typical operate time of 5 ms and a release time of 2.5 ms. It is built to withstand a wide operating temperature range from -40°C to 85°C.
With a compact mechanical design measuring 5mm in width, 15mm in height, and 28mm in depth, this relay is suitable for space-constrained applications. It is designed for through-hole mounting with a PC pin termination style. The relay is rated for a pollution degree of 3 and meets various standards including IEC 60664 and DIN VDE 0110.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal coil voltage is 60 VDC.
The maximum switching current is 6 A.
It has a SPDT (1 Form C) contact form.
The operating temperature range is -40°C to 85°C.
It is a through-hole mounted relay.
