2959560 Interface module with D-Sub female 9-position connector and terminal block screw connection. Rated 2.5A per contact at 125V, accepts 12-24 AWG wire.
Mfr Part #:

2959560

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Interface module with D-Sub female 9-position connector and terminal block screw connection. Rated 2.5A per contact at 125V, accepts 12-24 AWG wire.
✓ Total Stock: 6 pcs
$ Price Range: $96.99

2959560 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2959560 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Side Cable Retainer
Control Side Connection
Current Rating (Per Contact)
Length
Operating Temperature
Positions
Process Side Connection
Voltage
Width
Wire Gauge
View Similar Products (0)

2959560 Description

Short technical summary and product information.

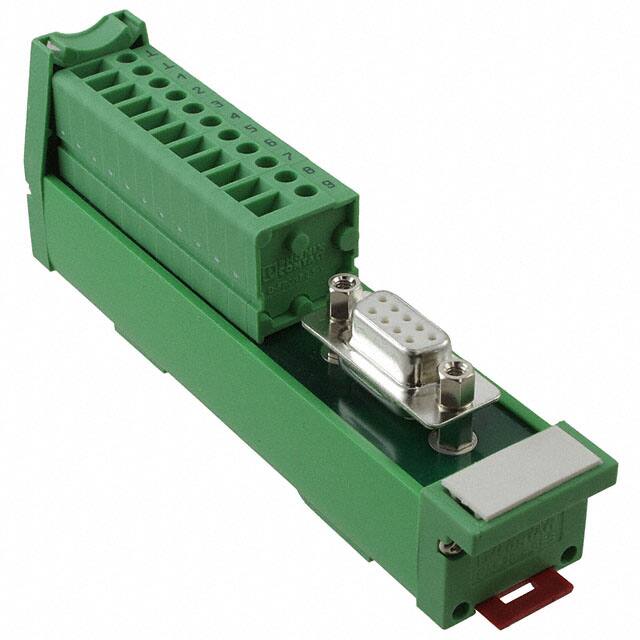

The Phoenix Contact 2959560 is a 9-position interface module that provides a reliable connection between a D-Sub female connector and terminal blocks with screw connections. It is designed for control side D-Sub female connections and process side terminal block wiring, making it suitable for industrial control cabinet wiring and signal interface applications.



Electrical specifications include a current rating of 2.5A per contact and a voltage rating of 125V. The module accepts wire gauges from 12 to 24 AWG, accommodating a range of signal and control wiring. The operating temperature range is -10°C to 50°C.



Mechanical features include a width of 116.99mm and a length of 24.99mm. The control side cable retainer uses a jackscrew socket for secure mating. The module is RoHS3 compliant and has an MSL of 1 Unlimited.

2959560 Quick Information

Product Type: Interface Module
Series: UM 25-D
Canonical Name: Interface Module D-Sub Female 9Pos
Subcategory: D-Sub Interface Module

2959560 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2959560 Estimated Pricing

Qty Low High
1+ $96.99 $96.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

2959560 Features

  • D-Sub female 9-position interface module.
  • Rated 2.5A per contact at 125V.
  • Accepts 12-24 AWG wire gauge.
  • Jackscrew socket cable retainer.
  • Operating temperature -10°C to 50°C.

2959560 Applications

  • Industrial control cabinet wiring interface.
  • Signal connection between D-Sub and terminal blocks.
  • PLC and I/O module field wiring.

2959560 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating per contact?

2.5 A per contact.

What is the voltage rating?

125 V.

What wire gauge does this module accept?

12-24 AWG.

What is the operating temperature range?

-10°C to 50°C.

How many positions does the D-Sub connector have?

9 positions.

What type of control side connection does it have?

D-Sub, Female.

What type of process side connection does it have?

Terminal Blocks - Screw Connection.
