| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,610 pcs
|
1610 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (Operation) | |
| Color | |
| Constructional Height | |
| For Use With | |
| Housing Type | |
| Inflammability Class UL 94 | |
| Length | |
| Material | |
| Minimum Order Quantity | |
| Packing Unit | |
| Power Dissipation at 20°C (Horizontal Mounting) | |
| Tape & Reel | |
| Type | |
| Width |

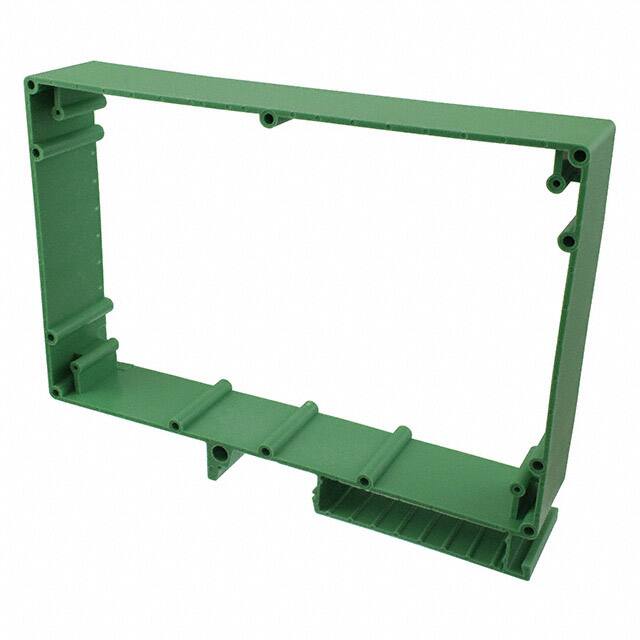

The Phoenix Contact 2956819 (UEG-EU-BE) is an electronic housing base element designed for DIN rail mounting. It features a green polyamide fiber reinforced housing with dimensions 172 mm length, 35 mm width, and 127.5 mm constructional height. The base element mounts on standard 35 mm DIN rails via a snap-on foot and accepts B 2,2 x 9,5 sheet metal screws for direct PCB mounting.
This base part of the UEG housing system offers an operating ambient temperature range of -40 °C to 105 °C and carries a UL 94 HB flammability rating. Power dissipation at 20°C in horizontal mounting is 8.9 W (with a second listed value of 18.3 W). The unit is supplied individually, with a minimum order quantity of 5 pieces. It is UL Recognized and has a country of origin of Germany.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.99 | $14.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40 °C to 105 °C.
Green polyamide fiber reinforced plastic.
Length 172 mm, width 35 mm, constructional height 127.5 mm.
Listed as RoHS3 Compliant but unverified.
