| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,246 pcs
|
4246 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

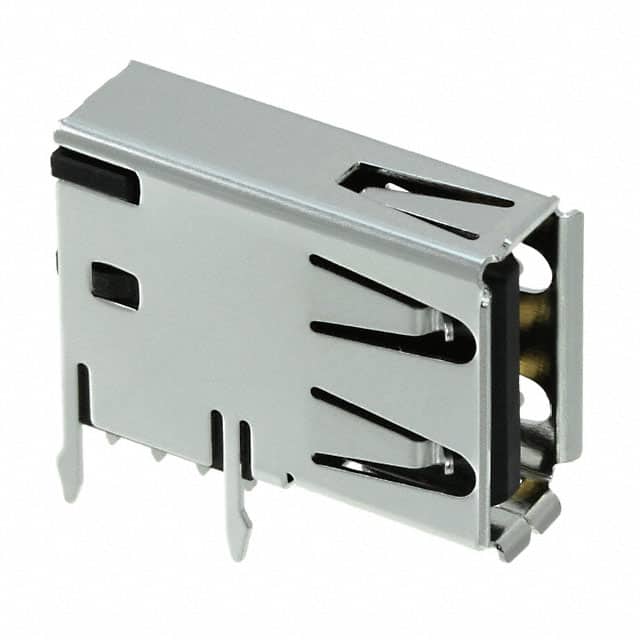

The TE Connectivity 292336-1 is a USB-A (USB TYPE-A) receptacle connector designed for USB 2.0 applications. It provides 4 contacts and a single port in a shielded, through-hole right angle mounting configuration.
The connector is rated for 1 A per contact and 30 VAC, with an operating temperature range of -55°C to 85°C. It is designed for 1500 mating cycles, ensuring reliability in repeated use.
Termination is via solder, and the connector is shielded for EMI protection. The mounting feature is vertical, and the product is RoHS3 compliant and REACH unaffected as per existing data.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.68 | $5.68 |
| 10+ | $4.49 | $4.49 |
| 22+ | $4.34 | $4.34 |
| 264+ | $4.17 | $4.17 |
| 506+ | $3.99 | $3.99 |
| 1,012+ | $3.70 | $3.70 |
| 2,508+ | $3.60 | $3.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a USB-A (USB TYPE-A) receptacle.
It has 4 contacts.
1 A per contact.
30 VAC.
Through hole, right angle with solder termination.
