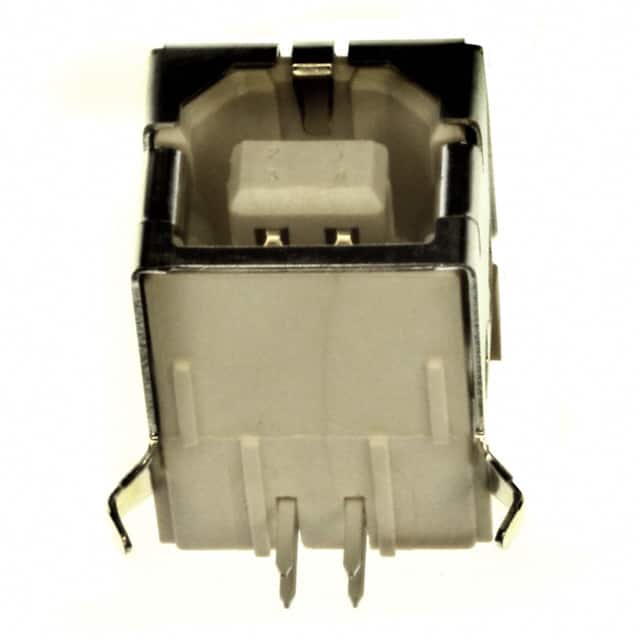

The TE Connectivity 292304-2 is a USB 2.0 Type B receptacle connector designed for through hole right angle mounting. It features 4 contacts rated at 1 A per contact and 30 VAC, with gold or gold flash over palladium nickel contact plating for reliable signal integrity. The shielded housing is made of black thermoplastic and includes a board lock for secure PCB retention.
This connector supports up to 1500 mating cycles and operates over a temperature range of -55°C to 85°C. The shell is plated with tin, and kinked legs provide additional PCB retention strength. It is recommended for a PCB thickness of 1.57 mm and has a tail length of 3.01 mm.
Typical applications include industrial equipment, data communication devices, and other systems requiring a robust USB Type B interface. The connector is packaged in trays of 100 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.92 | $2.92 |
| 10+ | $2.50 | $2.50 |
| 25+ | $2.29 | $2.29 |
| 100+ | $2.05 | $2.05 |
| 300+ | $1.98 | $1.98 |
| 500+ | $1.95 | $1.95 |
| 1,000+ | $1.93 | $1.93 |
| 5,000+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through Hole, Right Angle with horizontal mounting feature.
1 A per contact.
-55°C to 85°C.
1500 mating cycles.
Yes, it is shielded.
Gold or Gold Flash over Palladium Nickel with a thickness of 0.76 µm.
Black thermoplastic housing.
